Acterna JDSU HA1
| Attribute | Value |
|---|---|
| Device Type | Handheld Optical Attenuator |
| Attenuation Range | 0 to 60 dB |
| Wavelength Range | 1260 nm to 1620 nm |
| Connector Type | Universal adapter compatible (FC, SC, ST, LC) |
| Attenuation Resolution | 0.1 dB |
| Insertion Loss Accuracy | ±0.5 dB |
| Return Loss | >45 dB |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Power Source | Battery operated (AA batteries) |
| Standards Compliance | Telcordia GR-910-CORE |
Acterna JDSU HA1 Options:
- HA1 - 01 - HA1 model (high resolution, 1200-1700 nm)
- HA1 - Fiber Type 7 - 9/125 µm single-mode fiber
- HA1 - Built-in Option 0 - None
- HA1 - Built-in Option 1 - 50/50 coupler
- HA1 - Built-in Option 4 - 2/98 coupler
- HA1 - Built-in Option 5 - 30/70 coupler
- HA1 - Built-in Option 8 - 1:2 switch
- HA1 - Built-in Option 9 - 10/90 coupler
- HA1 - Return Loss K - Standard return loss
- HA1 - Return Loss A - Analog return loss
- HA1 - Port Type 1 - Bulkheads on front
- HA1 - Port Type 2 - Bulkheads on back
- HA1 - Port Type 3 - Pigtails on front
- HA1 - Port Type 4 - Pigtails on back
- HA1 - Connector NC - No connector
- HA1 - Connector FP - FC/PC
- HA1 - Connector FA - FC/APC
- HA1 - Connector SC - SC/PC
- HA1 - Connector SU - SC/APC
- HA1 - Connector SP - ST/PC
| Model | HA1 |
|---|

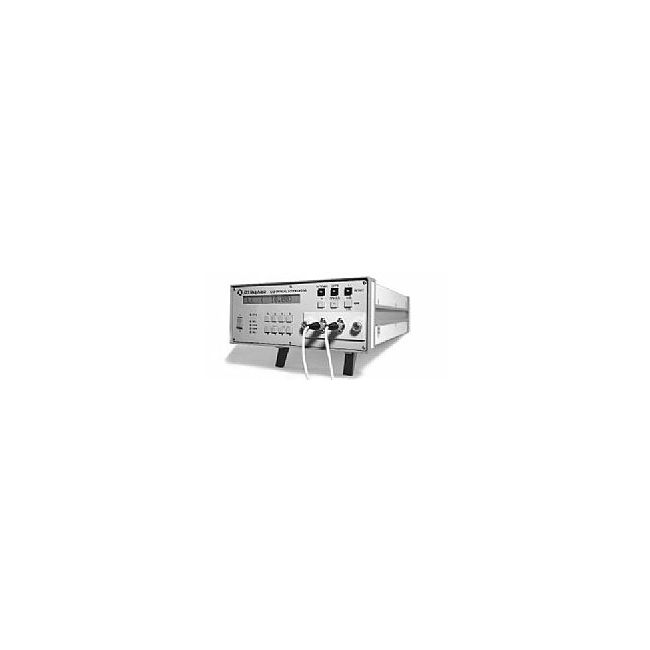

The Acterna JDSU HA1 is a precision optical attenuator engineered to deliver adjustable control of optical signal power in fiber optic networks. Its compact and lightweight structure ensures convenient handling, while supporting single-mode fiber applications. Designed with low insertion loss, it maintains signal integrity while offering stable performance across varied environments.
This device is widely used for simulating distance, regulating signal strength, and enhancing system performance. Its versatility makes it suitable for laboratory testing, telecom networks, and field operations, where reliability is essential.
Testwall can supply the used Acterna JDSU HA1, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Acterna JDSU HA1.
