Additel ADT761-MA
| Attribute | Value |
|---|---|
| Pressure Range | -0.97 to 20 bar (-14 to 290 psi) |
| Accuracy | 0.05% FS (includes repeatability, hysteresis, and temperature effects) |
| Pressure Type | Gauge and absolute pressure measurement |
| Display | 5-inch color touchscreen LCD display |
| Pressure Units | Supports multiple units: psi, bar, mbar, kPa, MPa, inH2O, mmHg, and more |
| Power Supply | Rechargeable lithium-ion battery, up to 10 hours of operation |
| Communication Interface | USB and Bluetooth connectivity for data transfer and remote operation |
| Data Logging | Internal memory capable of storing up to 10,000 data points |
| Operating Temperature | -10°C to 50°C (14°F to 122°F) |
| Ingress Protection | IP54 rated for dust and splash protection |
Additel ADT761-MA Options:
- ADT761-MA - N - Pressure port type: 1/4NPT female on External Pressure Manifold
- ADT761-MA - N2 - Pressure port type: 1/2NPT female on External Pressure Manifold
- ADT761-MA - B - Pressure port type: 1/4BSP female on External Pressure Manifold
- ADT761-MA - B2 - Pressure port type: 1/2BSP female on External Pressure Manifold
- ADT761-MA - M - Pressure port type: M20X1.5 female on External Pressure Manifold
| Model | ADT761-MA |
|---|

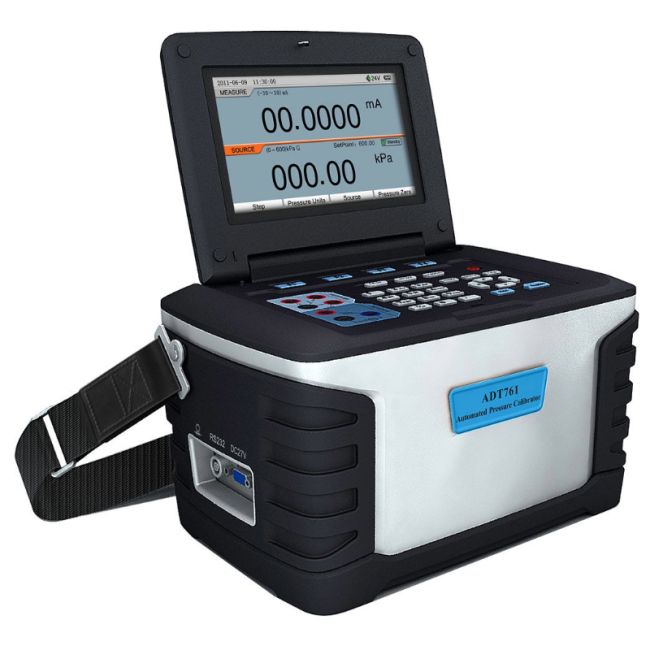

ADDITEL ADT761-MA Automated Pressure Calibrator
The Additel ADT761-MA Automated Pressure Calibrator, containing a built-in high performance electronic pump and precision pressure controller, provides a turnkey solution for calibration of gauges, transmitters, and switches both in the field and in the laboratory. Additel ADT761-MA offers a broad pressure range, making it suitable for many applications, including low and high-pressure systems. To improve the calibrator accuracy, two pressure modules with differing ranges are built-in and integrated with the internal pump and controller.
Additel ADT761-MA Automated Pressure Calibrator is designed to deliver high accuracy in pressure measurement and calibration. It is capable of ensuring precise calibration results, with minimal deviation, which is crucial for applications requiring stringent performance standards. In addition to the pressure generation, control, and measurement capabilities, the ADT761-MA also features HART communication capability, supplies 24V loop power, and reads the cur or voltage produced by the pressure transducers. The Additel ADT761-MA Automated Pressure Calibrator features a user-friendly interface with an intuitive display and simple controls. The device is designed to be easy to operate, even for users who may not have extensive experience in pressure calibration.
Specifications for the ADDITEL ADT761-MA Automated Pressure Calibrator Include:
| Pressure Range (Absolute) | 0.1 to 26 bar.a (1.7 to 390 psi.a) |
| Accuracy (Absolute) | 0.03 %FS |
| Stability | 0.005 %FS |
| Pump Life | >100,000 cycles |
