Additel ADT925-N
| Attribute | Value |
|---|---|
| Pressure Range | 0 to 925 psi (0 to 63.8 bar) |
| Accuracy | ±0.02% FS |
| Pressure Type | Gauge |
| Media Compatibility | Dry, non-corrosive gases |
| Process Connection | 1/4 NPT Male |
| Output Signal | 4-20 mA, 2-wire |
| Power Supply | 10 to 30 VDC |
| Operating Temperature | -10°C to 70°C (14°F to 158°F) |
| Ingress Protection | IP65 |
| Display | LCD digital display |
Additel ADT925-N Options:
- ADT925-N - N - Pressure port type: 1/4NPT female
- ADT925-N - N2 - Pressure port type: 1/2NPT female
- ADT925-N - B - Pressure port type: 1/4BSP female
- ADT925-N - B2 - Pressure port type: 1/2BSP female
- ADT925-N - M - Pressure port type: M20X1.5 female
- ADT925-N - SET - Pump and carrying case included
- ADT925-N - W - Water media version (ADT925W): deionized water as media instead of oil
| Model | ADT925-N |
|---|

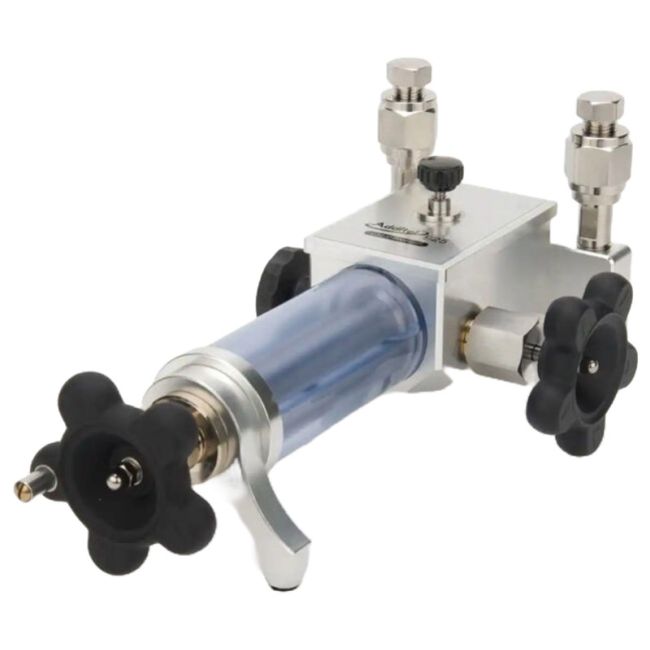

Additel ADT925-N 6000 psi Hydraulic press Test Pump
The Additel ADT925-N Hydraulic press Test Pump is is a hand operated pressure pump designed to generate pressure from 85% vacuum to 6,000 psi (400 bar). With the patented screw press technology, the high pressure can be easily generated, as well as increased and decreased smoothly.
Additel ADT925-N Hydraulic press Test Pump is an ideal comparison test pump for calibrating pressure measuring instruments such as test gauges, indicators or transducers in the field or laboratory. With no check valve (non-returning valve), the ADT925-N avoids the troublesome leakage issues that is usually experienced with most hand pumps and allows for minimal maintenance. Two hand-tight quick connectors installed on the Additel ADT925-N Hydraulic press Test Pump allow easy connecting and disconnecting to the test pump without the need for PTFE tape or wrenches.
Specifications for the Additel ADT925-N 6000 psi Hydraulic press Test Pump Include:
| Generated Pressure Range | 85% vacuum to 6,000 psi (400 bar) |
| Reservoir capacity | 200 ml |
| Media | Oil or deionized water |
| Piston volume | 18 ml (Low pressure priston), 0.9 ml (High pressure priston) |
