Viavi (Aeroflex IFR)

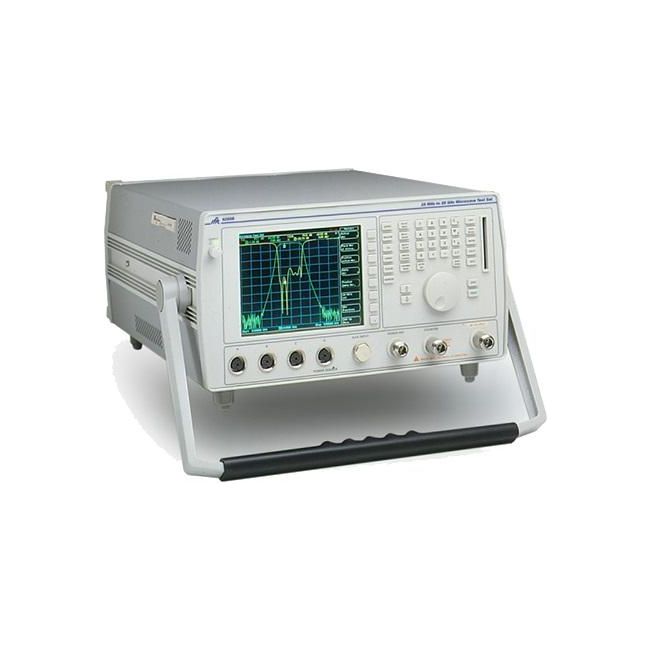

Aeroflex 6201B 8.00GHz Network Analyser
8.0GHz Network Analyser
300 kHz to 8.00 GHz Frequency Range
S11, S21, S12, S22 (Full 2-Port S-Parameters) Measurement Parameters
Up to 100 dB Dynamic Range
-60 dBm to +10 dBm Output Power Range
50 Ohm Impedance
| Attribute | Value |
|---|---|
| Frequency Range | 300 kHz to 8.00 GHz |
| Measurement Parameters | S11, S21, S12, S22 (Full 2-Port S-Parameters) |
| Dynamic Range | Up to 100 dB |
| Output Power Range | -60 dBm to +10 dBm |
| Impedance | 50 Ohm |
| Number of Data Points | Up to 1601 points per sweep |
| Display | 10.4-inch Color TFT LCD Touchscreen |
| Connector Type | Type-N Female (50 Ohm) |
| Interface / Connectivity | USB, LAN (Ethernet), GPIB |
| Power Supply | 100–240 V AC, 50/60 Hz |
Aeroflex 6201B 8.00GHz Network Analyser Options:
- 6201B - Option 001 - 70 dB step attenuator
- 6201B - Option 002 - Field replaceable RF output connector (3.5 mm and N type)
- 6201B - Option 003 - 3.5 in Floppy disk drive
- 6201B - Option 008 - 8.4 GHz Frequency extension (6201B only)
- 6201B - Option 009 - 90 dB step attenuator
| Model | 6201B |
|---|
The Aeroflex 6201B signal generator provides frequency coverage up to 8 GHz with wideband modulation support, ensuring precise RF and microwave testing. It delivers stable output and high accuracy for advanced wireless, radar, and defense applications.
Its compact design offers excellent signal quality, making it ideal for simulating real-world RF scenarios effectively. Engineers benefit from its repeatable test conditions and versatility in demanding environments.
Testwall can supply the used Aeroflex 6201B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Aeroflex 6201B.
