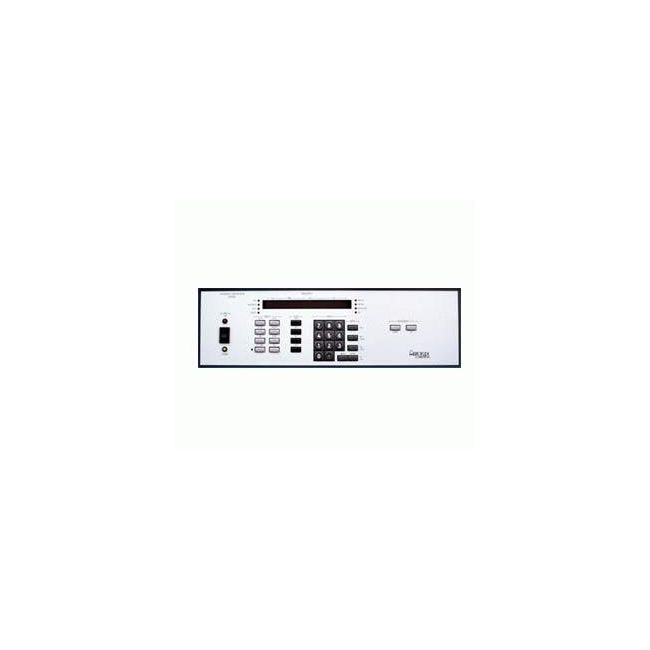

Aeroflex FS5000B 20.00GHz Signal Generator
| Attribute | Value |
|---|---|
| Frequency Range | 250 kHz to 20.00 GHz |
| Output Power Range | -110 dBm to +13 dBm |
| Frequency Resolution | 0.001 Hz |
| Phase Noise | -115 dBc/Hz at 20 kHz offset (1 GHz carrier) |
| Modulation Types | AM, FM, PM, Pulse, IQ |
| Frequency Switching Speed | Less than 5 ms |
| Output Connector | Type N Female |
| Reference Frequency | 10 MHz internal/external reference |
| Power Supply | 90–264 VAC, 47–63 Hz |
| Interface/Connectivity | GPIB, USB, Ethernet (LAN) |
Aeroflex FS5000B 20.00GHz Signal Generator Options:
- FS5000B - F - Frequency Range 4.8 to 13.5 GHz, 0.5 MHz Resolution
- FS5000B - X - Frequency Range 4.8 to 20 GHz, 1 MHz Resolution
- FS5000B - 13 - Frequency Range 0.3 to 13.5 GHz, 0.5 MHz Resolution
- FS5000B - 18 - Frequency Range 0.3 to 18.0 GHz, 1 MHz Resolution
- FS5000B - 20 - Frequency Range 0.3 to 20.0 GHz, 1 MHz Resolution
- FS5000B - 26.5 - Frequency Range 0.3 to 26.5 GHz, 1 MHz Resolution
- FS5000B - 1HZ - 1 Hz Frequency Resolution (Limits switching speed to 1 microsecond for steps less than 0.500 MHz - Does not affect spectral purity or phase noise)
- FS5000B - CHIRP - FM Chirp (Wideband FM)
- FS5000B - FMNORM - FM Normalized
- FS5000B - 40DBL - 40 GHz Frequency Doubler, +10 dBm, SMA (F) Input, K (F) Output, Rack Mount Unit (Dimensions: 2.2" H x 19" W x 6" D, Weight: <2 lbs)
- FS5000B - 10MHZ - 10 MHz Phase Lock Capability; Internal reference can be phase locked to 10 MHz Signal at 0 dBm ±2 dB (Provides External 10 MHz +2 dBm ±2 dB)
- FS5000B - RACK - 19 Inch Standard Equipment Rack Mounting Slides
| Model | FS5000B |
|---|
The Aeroflex FS5000B-20-00GHz Signal Generator is a robust frequency synthesizer designed for microwave and satellite testing, covering up to 20 GHz. It ensures superior stability, delivering precise and repeatable results in demanding applications.
Engineered for laboratory and production environments, it supports automated test applications, streamlining workflows while maintaining consistent performance and high reliability.
Testwall can supply the used Aeroflex FS5000B-20-00GHz Signal Generator, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Aeroflex FS5000B-20-00GHz Signal Generator.
