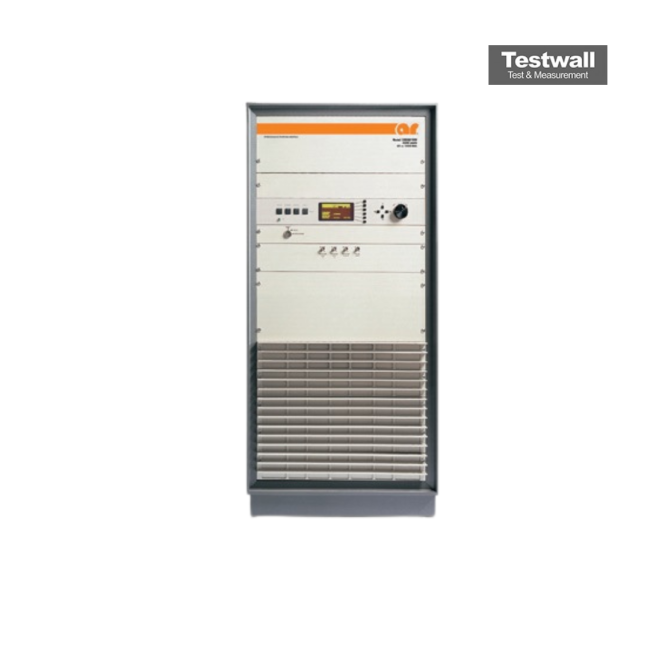

Amplifier Research 10000LM45
| Attribute | Value |
|---|---|
| Frequency Range | 10 kHz – 45 MHz |
| Output Power | 10,000 Watts (10 kW) CW |
| Gain | Minimum 50 dB |
| Input Impedance | 50 Ohms |
| Output Impedance | 50 Ohms |
| Input Power Required | Up to 200 mW for full output |
| Harmonic Distortion | -20 dBc or better |
| Cooling Method | Forced Air Cooling |
| Power Supply | 208/240 VAC, 3-Phase, 50/60 Hz |
| Application | EMC Testing, RF Amplification, Conducted Immunity Testing per IEC/EN 61000-4-6 |
| Model | 10000LM45 |
|---|
The Amplifier Research 10000LM45 is a liquid-cooled, high‑power broadband amplifier engineered for stable continuous‑wave performance in the low‑HF to mid‑VHF range, delivering 10,000 W‑class output using tetrode (or similar) final stages, incorporating internal high‑power load and protective circuitry for robust laboratory operation.
Thanks to its liquid cooling and thermal‑stable design, it supports prolonged duty cycles ideal for long‑duration immunity testing and high‑power RF experiments where precise thermal management is essential.
Testwall can supply the used Amplifier Research 10000LM45, fully tested. With expert support and global delivery, Testwall ensures high‑performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Amplifier Research 10000LM45.
