Amplifier Research 1000T1G2Z5
| Attribute | Value |
|---|---|
| Frequency Range | 1 MHz – 1 GHz |
| Output Power | 1000 Watts CW |
| Gain | 60 dB minimum |
| Input Power Required for Rated Output | 1 Watt maximum |
| Harmonic Distortion | -10 dBc typical |
| Input VSWR | 2.0:1 maximum |
| Output VSWR (Load) | Unconditionally stable into any load |
| Power Requirements | 208/240 VAC, 3-phase, 50/60 Hz |
| Cooling Method | Forced air cooling |
| Output Connector | Type N Female |
Amplifier Research 1000T1G2Z5 Options:
- 1000T1G2Z5 - E1C - Cabinet: Without outer enclosure, two subassemblies. 48.26 x 22.2(5U) x 65.1 cm and 48.26 x 39.9(9U) x 76.45 cm. Subtract approximately 14 kg, 30 lbs for removal of outer enclosure.
- 1000T1G2Z5 - E2S - Slides: Slides installed, add approximately 2 kg, 5 lbs.
- 1000T1G2Z5 - E3H - Handles: Front pull handles installed.
- 1000T1G2Z5 - P1 - Prime Power 208V, US: 208 ±10% VAC, 3 phase, delta (4 wire) 50/60 Hz, 8 KVA maximum.
- 1000T1G2Z5 - P2 - Prime Power 400V, Europe: 360-435 VAC, 3 phase, WYE (5 wire) 50/60 Hz, 8 KVA maximum. CE marked to comply with EMC European Directive 89/336/EEC for operation inside a shielded room.
- 1000T1G2Z5 - S1F - Front panel connectors: Input, output, forward and reflected power sample ports on front panel, not on rear panel.
- 1000T1G2Z5 - S2R - Remote interface: RS-232 serial, DB-9 female connector on rear panel. Replaces built-in IEEE-488 GPIB interface.
- 1000T1G2Z5 - S3C - Connector: RF output connector 1 5/8 EIA on rear panel.
- 1000T1G2Z5 - S4C - Covers: RF connectors have protective metal covers.
- 1000T1G2Z5 - S3R - Remote Interface: Change remote interface from standard IEEE-488 GPIB to Ethernet.
- 1000T1G2Z5 - S2K - Filters: Supplied with two externally-mountable bandpass harmonic filters and a switch kit. Insertion loss of filter/switch kit is maximum 0.5 dB. Output power at fundamental of 900 watts, typical.
- 1000T1G2Z5 - SP1 - Special Package: 7/8 inch EIA flange output connector, output to control external RF switches for sub-band selection, increased rack height by 17.5 inches, six 110 VAC outlets, larger casters on modified base, switched filter assembly with reduced harmonic levels of minus 20 dBc maximum at 800 watts fundamental power. Includes special Sandia National Laboratories testing at 700 watts output at 2.6:1 VSWR load mismatch and front panel switches sealed from dust.
- 1000T1G2Z5 - SP2 - Unit supplied in a 30U wheeled rack. Includes dual harmonic band-pass filters and switch kit. Insertion loss of filter/switch kit is maximum 0.5 dB. Output power at fundamental of 900 watts, typical. 7/8" EIA output connector on rear panel. Includes 360-435VAC 3 phase WYE (5 wire) prime power (P2 power option).
| Model | 1000T1G2Z5 |
|---|

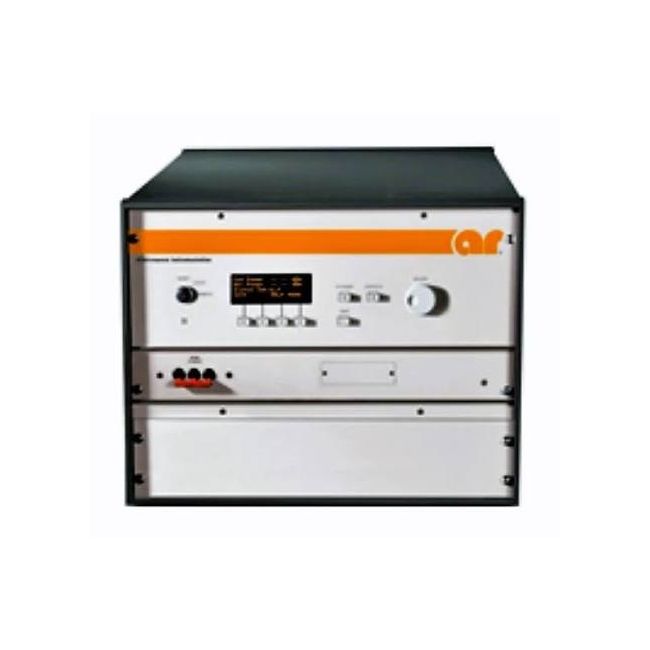

The Amplifier Research (AR) 1000T1G2z5 is a broadband traveling wave tube microwave amplifier offering a guaranteed minimum of 1000 W output across 1–2.5 GHz, with 60 dB minimum gain and at least 35 dB continuous gain adjustment. It includes a front-panel digital display, IEEE-488 (GPIB) interface, VSWR protection, gain control, and detailed system status reporting.
Its modular power supply and RF architecture, featuring a lightweight switching-mode design, enable easy servicing and reduced weight. The amplifier faithfully reproduces AM, FM, and pulse modulation and is ideal for EMC testing, industrial research, university R&D, and general test-and-measurement applications.
Testwall can supply the used Amplifier Research 1000T1G2z5, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Amplifier Research 1000T1G2z5.
