Amplifier Research 1000TP8G18
| Attribute | Value |
|---|---|
| Frequency Range | 8 GHz – 18 GHz |
| Minimum Output Power | 1000 Watts |
| Power Output (CW) | 1000 W minimum saturated output power |
| Small Signal Gain | 60 dB minimum |
| Input for Rated Output | 0 dBm typical |
| Noise Figure | 12 dB typical |
| Input/Output Impedance | 50 Ohms |
| Input Connector | SMA Female |
| Output Connector | WR-62 Waveguide Flange |
| Power Requirements | 208/240 VAC, 3-Phase, 50/60 Hz |
| Model | 1000TP8G18 |
|---|

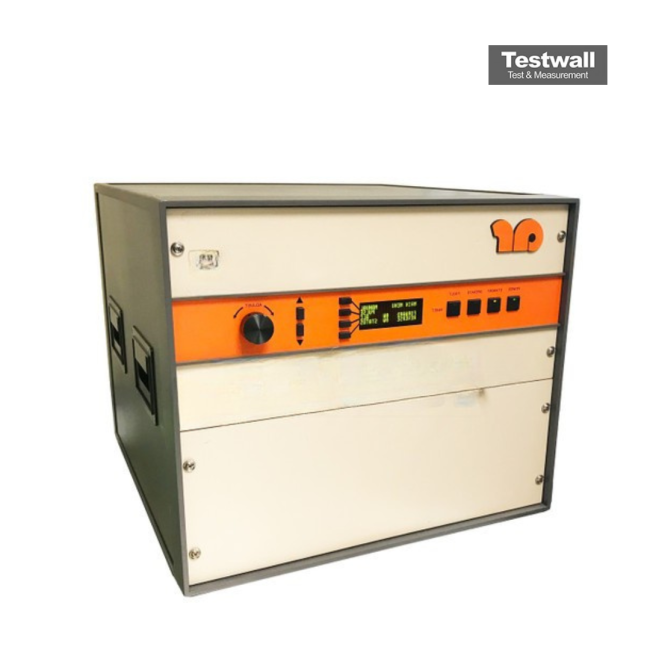

The Amplifier Research 1000TP8G18 is a powerful broadband TWT amplifier engineered for pulsed RF applications from 7.5 to 18 GHz, delivering a peak output of 1 kW and nominal levels up to 1.8 kW. Optimized for low to moderate duty cycles, it features forced-air cooling, a digital front-panel interface, and real-time monitoring of key parameters including helix current, cathode voltage, and RF power.
With IEEE-488 (GPIB), TTL gating, VSWR protection, gain control, and RF sampling, this amplifier suits EMC susceptibility testing, R&D, and educational labs requiring robust wideband performance.
Testwall can supply the used Amplifier Research 1000TP8G18, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Amplifier Research 1000TP8G18.
