Amplifier Research 1000W1000G
| Attribute | Value |
|---|---|
| Frequency Range | 1 MHz – 1000 MHz |
| Output Power | 1000 Watts CW Minimum |
| Gain | 60 dB Minimum |
| Gain Flatness | ±3 dB Maximum |
| Input Power for Rated Output | 0 dBm Typical |
| Input VSWR | 2.0:1 Maximum |
| Output VSWR | 2.0:1 Maximum |
| Harmonic Distortion | -10 dBc Maximum |
| Power Supply Requirement | 208/240 VAC, Single Phase, 50/60 Hz |
| Cooling Method | Forced Air Cooling |
Amplifier Research 1000W1000G Options:
- 1000W1000G - N - RF Input Connector Location/Type: N female
- 1000W1000G - F - RF Input Connector Location: Front
- 1000W1000G - R - RF Input Connector Location: Rear
- 1000W1000G - 716 - RF Output Connector Type: 7-16 DIN female
- 1000W1000G - NSP - No RF Sample Ports
- 1000W1000G - SPF - RF Sample Ports Front
- 1000W1000G - SPR - RF Sample Ports Rear
| Model | 1000W1000G |
|---|

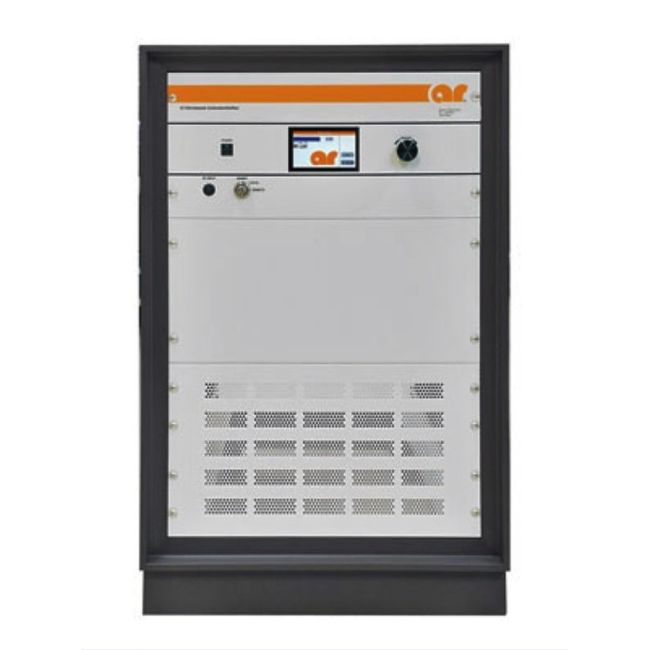

The Amplifier Research 1000W1000G is a solid-state, self-contained, air-cooled broadband amplifier delivering a minimum of 1000 watts RF output power. It offers instantaneous bandwidth, high gain, and excellent linearity, with a front panel gain control for convenient output adjustment. An RF input leveling circuit protects the unit against input overdrive above 0dBm, ensuring reliable and consistent performance.
Equipped with a Digital Control Panel (DCP), the 1000W1000G provides local and remote operation through a color LCD touch screen. It includes advanced fault detection for over-temperature or power supply issues, plus remote access via GPIB/IEEE-488, RS-232, fiber optic, USB, and Ethernet interfaces.
Testwall can supply the used Amplifier Research 1000W1000G, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Amplifier Research 1000W1000G.
