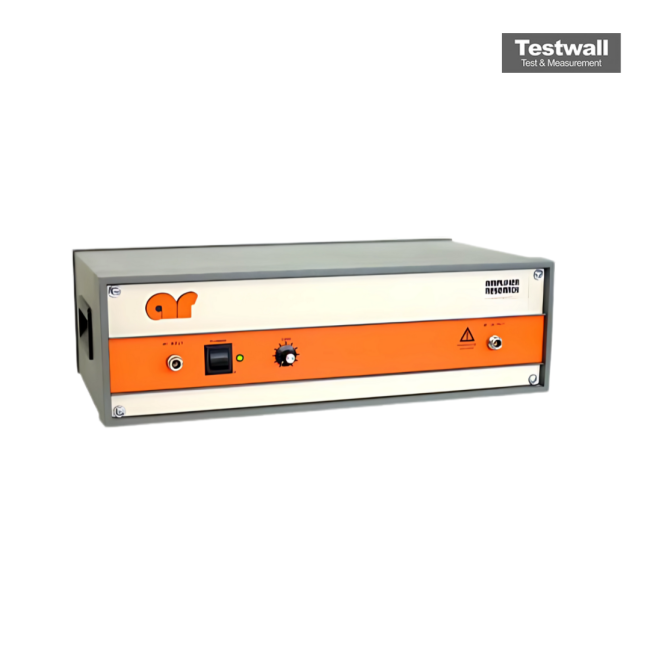

Amplifier Research 100L
| Attribute | Value |
|---|---|
| Frequency Range | 10 kHz – 220 MHz |
| Rated Power Output | 100 Watts CW (minimum) |
| Gain | 50 dB (minimum) |
| Input for Rated Output | 1 mW (0 dBm) maximum |
| Harmonic Distortion | -10 dBc or less at rated output |
| Input VSWR | 2.0:1 maximum |
| Output VSWR (Load Tolerance) | Unconditionally stable into any load mismatch |
| Power Requirements | 220 VAC, 50/60 Hz, single phase |
| Cooling Method | Forced air cooling |
| Connector Types | Input: BNC female; Output: Type N female |
| Model | 100L |
|---|
The Amplifier Research 100L is a low-frequency amplifier engineered to deliver 100 W of CW output power with exceptional linearity. It is primarily designed for EMC conducted testing and immunity validation, ensuring clean and stable amplification across lower frequency bands. Built with robust safety mechanisms such as thermal cutoff and fault protection, it offers consistent reliability even during extended test cycles.
Its low-frequency design makes it ideal for applications demanding high stability and repeatability in laboratory environments, with construction that supports long-term operational durability.
Testwall can supply the used Amplifier Research 100L, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Amplifier Research 100L.
