Amplifier Research 100T40G50
| Attribute | Value |
|---|---|
| Frequency Range | 1 MHz – 40 GHz |
| Output Power | 100 Watts (CW) |
| Gain | 50 dB (typical) |
| Input Power Required for Rated Output | 0 dBm (typical) |
| Input VSWR | 2.0:1 (maximum) |
| Output VSWR | 2.0:1 (maximum) |
| Noise Figure | 12 dB (typical) |
| Power Supply Requirement | 208/240 VAC, 3-phase, 50/60 Hz |
| Connector Type | SMA (input), WR-28 Waveguide (output) |
| Cooling Method | Forced air cooling |
Amplifier Research 100T40G50 Options:
- 100T40G50 - M1 - E1C: Cabinet without outer enclosure (for rack mounting), size 49 x 40 (9U) x 76 cm, 19 x 15.75 (9U) x 30 in. Subtract approximately 14 kg, 30 lbs, for removal of outer enclosure.
- 100T40G50 - M2 - E3H: Front handles installed.
- 100T40G50 - M3 - E1C & E3H: Cabinet without outer enclosure plus front handles installed.
- 100T40G50 - M4 - E1C & E2S: Cabinet without outer enclosure plus slides installed (add approximately 5 lbs, 2 kg).
- 100T40G50 - M5 - E1C & E2S & E3H: Cabinet without outer enclosure, slides installed, and front handles installed.
| Model | 100T40G50 |
|---|

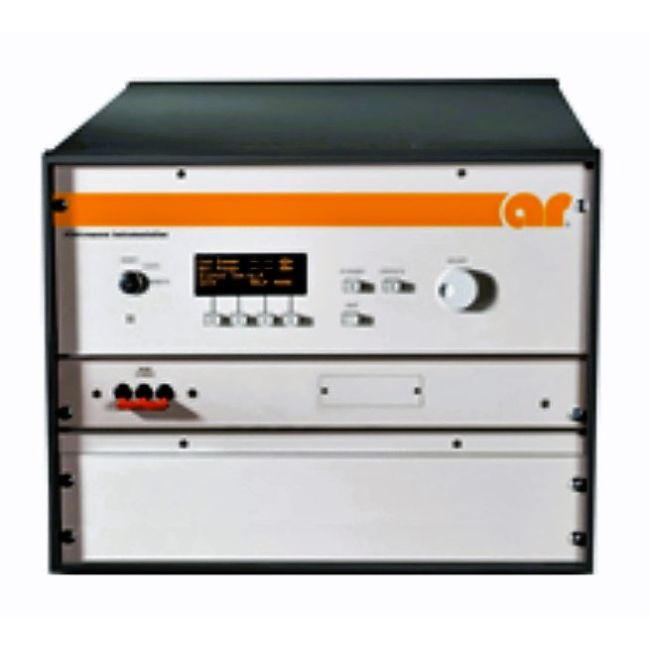

The Amplifier Research 100T40G50 is a self‑contained, forced‑air cooled broadband traveling‑wave tube (TWT) microwave amplifier delivering a conservative minimum of 100 watts CW at the output flange over a 40–50 GHz instantaneous bandwidth. It features ±8 dB flatness, 35 dB gain control, 50‑ohm input/output, VSWR protection, IEEE‑488 interface, front‑panel digital display, and comprehensive monitoring of helix current, voltages, and temperatures. Its modular design and switching‑mode power supply ensure efficient, lightweight operation.
Optimized for EMC RF susceptibility testing, R&D, industrial, and university applications, it faithfully reproduces AM, FM, and pulse modulation and allows both benchtop and rack‑mounted use.
Testwall can supply the used Amplifier Research 100T40G50, fully tested. With expert support and global delivery, Testwall ensures high‑performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Amplifier Research 100T40G50.
