Amplifier Research

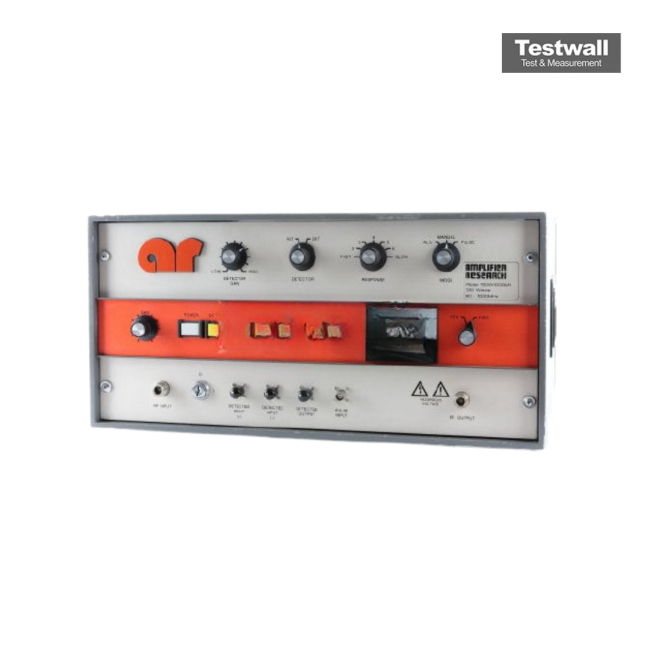

Amplifier Research 100W1000BM2
100W, 1MHz To 1GHz RF Amplifier
1 MHz – 1000 MHz Frequency Range
100 Watts CW Minimum Output Power
50 dB Minimum Gain
±3 dB Maximum Gain Flatness
1 mW (0 dBm) Maximum Input for Rated Output
| Attribute | Value |
|---|---|
| Frequency Range | 1 MHz – 1000 MHz |
| Output Power | 100 Watts CW Minimum |
| Gain | 50 dB Minimum |
| Gain Flatness | ±3 dB Maximum |
| Input for Rated Output | 1 mW (0 dBm) Maximum |
| Output VSWR | 2.0:1 Maximum |
| Input VSWR | 2.0:1 Maximum |
| Harmonic Distortion | -10 dBc Maximum at Rated Output |
| Power Requirements | 208/240 VAC, Single Phase, 50/60 Hz |
| Cooling Method | Forced Air Cooling |
| Model | 100W1000BM2 |
|---|
The Amplifier Research 100W1000BM2 is a high-power broadband amplifier covering 80–1000 MHz with 100 W CW output. Its BM2 feature provides internal leveling and monitoring for precise control, ensuring excellent frequency response and dependable long-term performance.
Engineered for EMC immunity and RF testing, this unit delivers stable, automated operation with flat amplitude response across its full bandwidth.
Testwall can supply the used Amplifier Research 100W1000BM2, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Amplifier Research 100W1000BM2.
