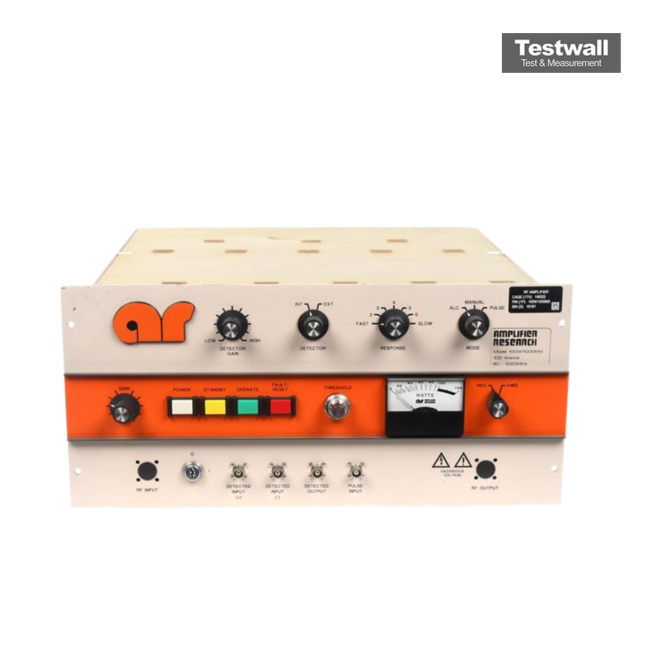

Amplifier Research 100W1000M7
| Attribute | Value |
|---|---|
| Frequency Range | 1 MHz – 1000 MHz |
| Output Power | 100 Watts CW Minimum |
| Gain | 50 dB Minimum |
| Gain Flatness | ±3 dB Maximum |
| Input for Rated Output | 10 mW (10 dBm) Maximum |
| Input VSWR | 2.0:1 Maximum |
| Output VSWR | 2.0:1 Maximum |
| Harmonic Distortion | -10 dBc Maximum |
| Power Requirements | 220 VAC, Single Phase, 50/60 Hz |
| Cooling Method | Forced Air Cooling |
| Model | 100W1000M7 |
|---|
The Amplifier Research 100W1000M7 delivers a continuous 100 W output across the 80–1000 MHz band, integrating the advanced M7 functionality for remote monitoring and control. Its broadband design ensures low distortion and stable amplification for demanding RF applications.
Engineered for EMC test chambers and RF laboratories, it supports automated testing with intelligent interface options, enhancing efficiency and precision in system integration.
Testwall can supply the used Amplifier Research 100W1000M7, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Amplifier Research 100W1000M7.
