Amplifier Research 1500W1000A
| Attribute | Value |
|---|---|
| Frequency Range | 80 MHz – 1000 MHz |
| Output Power | 1500 W CW Minimum |
| Gain | 63 dB Minimum |
| Input Power for Rated Output | 100 mW (20 dBm) Maximum |
| Input VSWR | 2.0:1 Maximum |
| Output VSWR (Load) | Unconditionally stable into any load |
| Harmonic Distortion | -10 dBc Maximum |
| Power Supply Requirement | 208/240 VAC, 3-Phase, 50/60 Hz |
| Cooling Method | Forced Air Cooling |
| Output Connector | Type N Female |
Amplifier Research 1500W1000A Options:
- 1500W1000A - 2000W1000D - Upgrade to 2000W1000D
- 1500W1000A - 3000W1000B - Upgrade to 3000W1000B
- 1500W1000A - 4000W1000B - Upgrade to 4000W1000B
| Model | 1500W1000A |
|---|

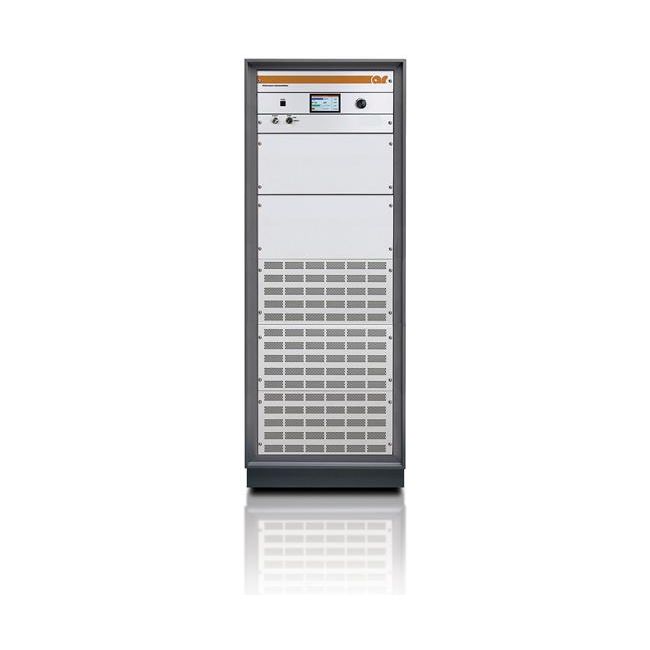

The Amplifier Research 1500W1000A is a self-contained, air-cooled, broadband RF amplifier delivering a minimum of 1500W output power across 80–1000 MHz. With 61.8 dB minimum gain, -20 dBc harmonic distortion, and push-pull circuitry for stability, it ensures precision and high performance. It includes Digital Control Panel with gain control, automatic level control, RF sample ports, and advanced protection features.
Ideal for RF susceptibility testing, antenna and component evaluation, watt meter calibration, and as a driver for higher power systems, this amplifier guarantees high gain and instantaneous bandwidth.
Testwall can supply the used Amplifier Research 1500W1000A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Amplifier Research 1500W1000A.
