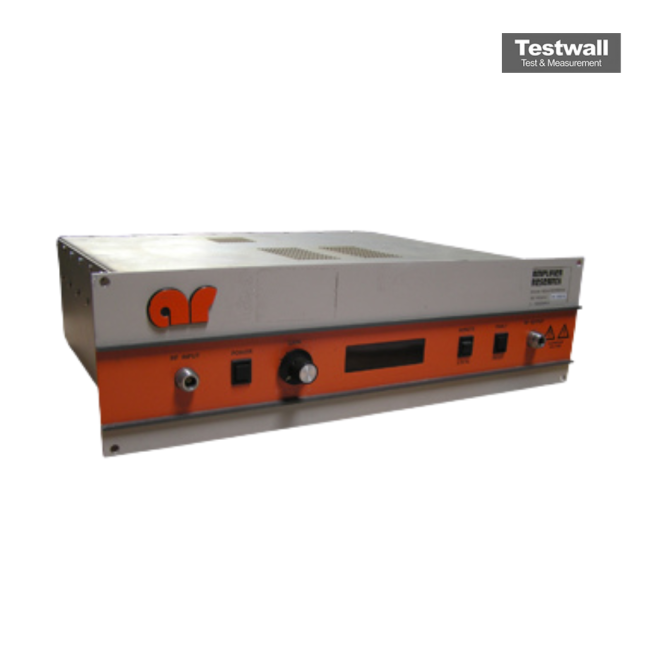

Amplifier Research 200W1000A
| Attribute | Value |
|---|---|
| Frequency Range | 1 MHz – 1000 MHz |
| Output Power | 200 Watts CW Minimum |
| Gain | 53 dB Minimum |
| Gain Flatness | ±3.5 dB Maximum |
| Input for Rated Output | 100 mW (20 dBm) Maximum |
| Input VSWR | 2.0:1 Maximum |
| Output VSWR | 2.0:1 Maximum (into matched load) |
| Harmonic Distortion | -10 dBc Maximum at Rated Output |
| Power Requirements | 208/220 VAC, Single Phase, 50/60 Hz, 20A |
| Cooling Method | Forced Air Cooling |
| Model | 200W1000A |
|---|
The Amplifier Research 200W1000A is a broadband amplifier delivering a continuous 200 W output across a wide frequency range up to 1 GHz. Equipped with Automatic Level Control (ALC), it stabilizes output under varying conditions, ensuring broad flat gain and low distortion. Its architecture is optimized for reliability and accuracy in critical RF testing environments.
Engineered for EMC immunity testing, RF system calibration, and drive‑test applications, this amplifier guarantees consistent performance with dependable signal injection capabilities across DC to 1 GHz bandwidth.
Testwall can supply the used Amplifier Research 200W1000A, fully tested. With expert support and global delivery, Testwall ensures high‑performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Amplifier Research 200W1000A.
