Amplifier Research 240S1G3A
| Attribute | Value |
|---|---|
| Frequency Range | 1 GHz – 3 GHz |
| Minimum Output Power | 240 Watts CW |
| Gain | 50 dB minimum |
| Input Power for Rated Output | 100 mW (20 dBm) maximum |
| Harmonics | -10 dBc or better |
| Input VSWR | 2.0:1 maximum |
| Output VSWR | 2.0:1 maximum |
| Power Supply Requirement | 208/240 VAC, Single Phase, 50/60 Hz |
| Cooling | Forced air (internal blower) |
| Connectors | Type N Female (Input and Output) |
| Model | 240S1G3A |
|---|

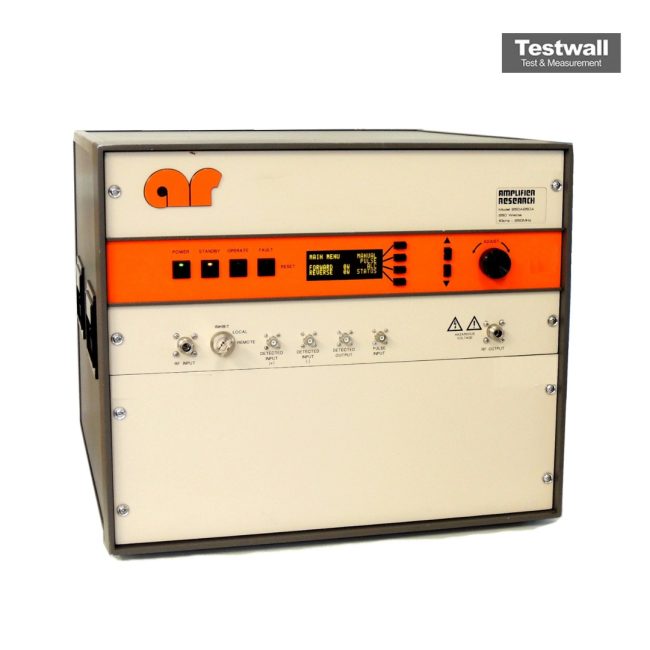

The Amplifier Research 240S1G3A is a rugged solid-state amplifier delivering 240 W CW across 0.8–3 GHz with push-pull RF stages for minimal distortion. It features a Digital Control Panel with graphic display, soft-keys, rotary knob, and dedicated switches for precise power and fault management. Advanced functions include automatic leveling (ALC), RF output protection, and internal RF detection for enhanced diagnostic capabilities.
Users benefit from versatile control via GPIB and RS-232 (wired or fiber), ensuring seamless integration as a standalone unit or in modular systems.
Testwall can supply the used Amplifier Research 240S1G3A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Amplifier Research 240S1G3A.
