Amplifier Research 250U1000A
| Attribute | Value |
|---|---|
| Frequency Range | 10 kHz – 1000 MHz |
| Output Power | 250 Watts CW Minimum |
| Gain | 55 dB Minimum |
| Input for Rated Output | 10 mW (10 dBm) Maximum |
| Input Impedance | 50 Ohms |
| Output Impedance | 50 Ohms |
| Harmonic Distortion | -10 dBc Maximum |
| Power Requirements | 200–240 VAC, Single Phase, 47–63 Hz |
| Cooling | Forced Air Cooling |
| Connectors | Type N Female (Input and Output) |
Amplifier Research 250U1000A Options:
- 250U1000A - F-N - RF Input Connector Location Front, Type N
- 250U1000A - R-N - RF Input Connector Location Rear, Type N
- 250U1000A - F-N - RF Output Connector Location Front, Type N
- 250U1000A - R-N - RF Output Connector Location Rear, Type N
- 250U1000A - E - With Enclosure
- 250U1000A - NE - No Enclosure
| Model | 250U1000A |
|---|

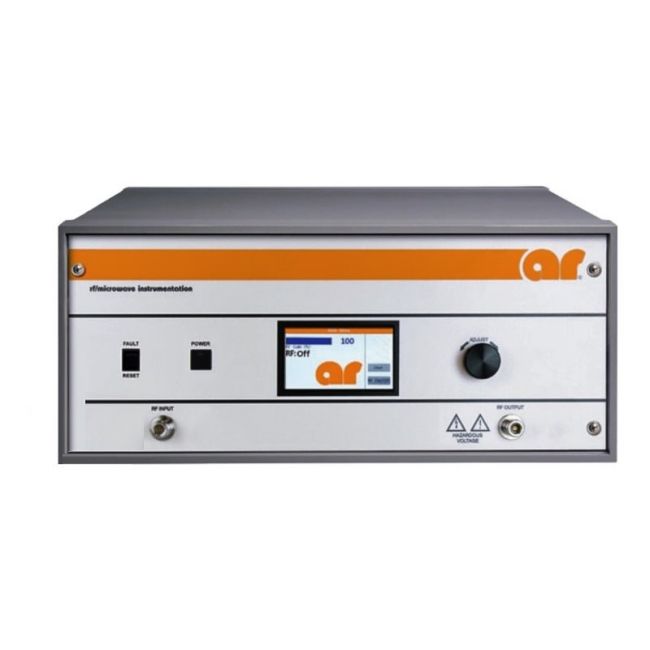

The Amplifier Research 250U1000A delivers a minimum of 250 watts RF power when paired with a sweep generator. It comes in a sleek cabinet for benchtop use or rack mounting, offering full remote control through the optional Remotes Package with GPIB/IEEE-488, RS-232, USB, Ethernet, and fiber optic connectivity.
Equipped with a convenient front panel gain control, the unit protects against RF input overdrive using an RF input leveling circuit. It is air-cooled, solid-state, and broadband, ideal for high gain, linear, wideband applications with robust protection features.
Testwall can supply the used Amplifier Research 250U1000A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Amplifier Research 250U1000A.
