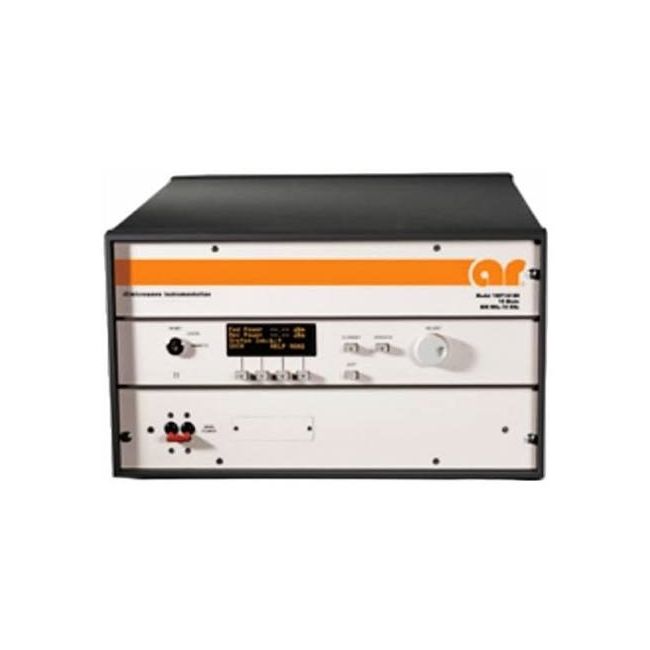

Amplifier Research 3000TP12G18
| Attribute | Value |
|---|---|
| Frequency Range | 1.2 GHz – 1.8 GHz |
| Output Power (CW) | 3000 Watts |
| Gain | ≥ 60 dB |
| Input Power Required for Rated Output | ≤ 0 dBm |
| Harmonics | -20 dBc or better |
| Input VSWR | 2.0:1 Maximum |
| Output VSWR (Load) | 2.0:1 Reflected, Amplifier Protected |
| Noise Figure | ≤ 15 dB |
| Power Requirements | 208/240 VAC, 3 Phase, 50/60 Hz |
| Cooling | Forced Air Cooling |
Amplifier Research 3000TP12G18 Options:
- 3000TP12G18 - E1C - Cabinet: Without outer enclosure for rack mounting, size (W x H x D) 49 x 22 (5U) x 74 cm, 19 x 8.75 (5U) x 29 in. Subtract approximately 11 kg, 25 lbs, for removal of outer enclosure.
- 3000TP12G18 - E2S - Slides: Slides installed, add approximately 2 kg, 5 lbs.
- 3000TP12G18 - E3H - Handles: Front pull handles installed.
- 3000TP12G18 - P1 - Primary Power: 208 VAC ±10% 3-phase, 50/60 Hz, 2.0 KVA maximum.
- 3000TP12G18 - P2 - Primary Power: 190-260 VAC single phase, 50/60 Hz, 2.0 KVA maximum.
- 3000TP12G18 - S1R - Reflected power sample port, Type N female connector on rear panel. Forward and reflected sample port calibration data supplied on disk in Excel format at 51 points, evenly spaced over specified frequency response.
- 3000TP12G18 - S2M - Special Mismatch Tolerance Operation: Amplifier will permit up to 1.9 kW reflected power at maximum 8 µs pulse width and 0.8% duty, without VSWR trip or foldback. Exceeding 1.9 kW reflected power will cause the unit to truncate pulse within 2 µs.
- 3000TP12G18 - M1 - Configuration: E1C cabinet, P2 primary power.
- 3000TP12G18 - M2 - Configuration: E3H handles, P2 primary power.
- 3000TP12G18 - M3 - Configuration: E1C cabinet and E3H handles, P2 primary power.
- 3000TP12G18 - M4 - Configuration: E1C cabinet and E2S slides, P2 primary power.
- 3000TP12G18 - M5 - Configuration: E1C cabinet, E2S slides, and E3H handles, P2 primary power.
- 3000TP12G18 - M6 - Configuration: P2 primary power, S1R reflected power sample port.
- 3000TP12G18 - M7 - Configuration: P1 primary power, S2M special mismatch tolerance operation.
- 3000TP12G18 - M8 - Configuration: P1 primary power.
| Model | 3000TP12G18 |
|---|
The Amplifier Research 3000TP12G18 is a 3 kW pulse/TWT amplifier designed to cover the 12–18 GHz frequency range. Engineered for high-power applications, it provides exceptional pulsed output capabilities, making it ideal for radar simulation, EMC testing, and transient signal generation. The rugged design ensures reliability, while advanced interlocks and monitoring systems enhance operational safety and performance across demanding environments.
Its modular servicing approach and comprehensive system diagnostics allow for efficient maintenance and seamless integration into testing setups. With high output stability and robust construction, it supports critical applications requiring power and precision.
Testwall can supply the used Amplifier Research 3000TP12G18, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Amplifier Research 3000TP12G18.
