Amplifier Research 300TR7Z5G18
| Attribute | Value |
|---|---|
| Frequency Range | 0.7 GHz to 5 GHz |
| Output Power | 300 Watts minimum |
| Gain | 55 dB minimum |
| Gain Flatness | ±3 dB maximum |
| Input Power for Rated Output | 0 dBm typical |
| Input VSWR | 2.0:1 maximum |
| Output VSWR | 2.0:1 maximum |
| Harmonics | -10 dBc maximum |
| Power Requirements | 200-240 VAC, Single Phase, 50/60 Hz |
| Cooling Method | Forced Air Cooling |
| Model | 300TR7Z5G18 |
|---|

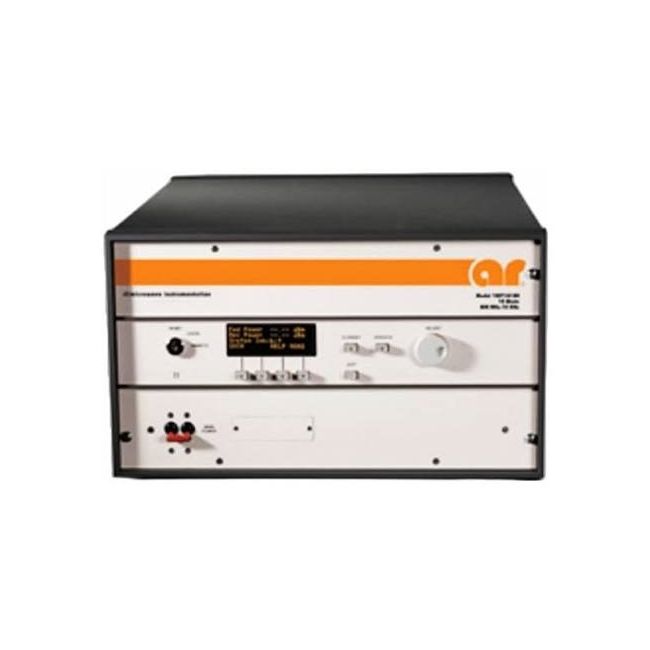

The Amplifier Research 300TR7z5G18 is a self-contained, forced-air cooled broadband traveling wave tube (TWT) amplifier delivering a minimum of 300 watts from 7.5 to 18 GHz. With a nominal output of 350 watts, it provides high gain up to 55 dB, adjustable over 35 dB. Features include a digital front panel display, IEEE-488 (GPIB) interface, VSWR protection, gain control, RF output sampling, and comprehensive monitoring of helix current, cathode voltage, collector voltage, heater parameters, and cabinet temperature.
Designed for rack or bench use, the Amplifier Research 300TR7z5G18 ensures reliable RF power for EMC susceptibility testing, industrial research, university applications, and service requirements. It reproduces AM, FM, and pulse modulation faithfully while providing robust protection against mismatches.
Testwall can supply the used Amplifier Research 300TR7z5G18, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Amplifier Research 300TR7z5G18.
