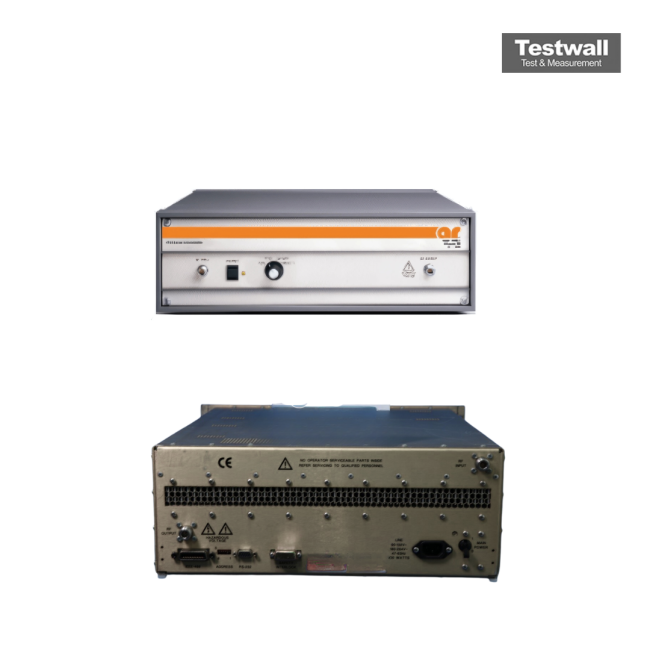

Amplifier Research 30S1G3M3
| Attribute | Value |
|---|---|
| Frequency Range | 1 GHz – 3 GHz |
| Minimum Output Power | 30 Watts CW |
| Gain | 50 dB minimum |
| Gain Flatness | ±3 dB maximum |
| Input for Rated Output | -7 dBm typical |
| Input VSWR | 2.0:1 maximum |
| Output VSWR | 2.0:1 maximum |
| Noise Figure | 12 dB typical |
| Power Requirements | 220 VAC, 50/60 Hz, Single Phase |
| Cooling Method | Forced Air Cooling |
| Model | 30S1G3M3 |
|---|
The Amplifier Research 30S1G3M3 is a mid-power amplifier operating from 1 GHz to 3 GHz, delivering ~30 W of CW output. Featuring solid-state linear amplification, it ensures reliable gain and precise signal reproduction. Its integrated monitoring and control module ('M3') provides seamless setup for automated systems, while its compact form factor makes it ideal for agile laboratory environments.
Perfect for pre-compliance testing and RF component evaluation, the 30S1G3M3 guarantees stable operation, consistent performance, and efficient integration into bench-level test systems.
Testwall can supply the used Amplifier Research 30S1G3M3, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Amplifier Research 30S1G3M3.
