Amplifier Research 30W1000B
| Attribute | Value |
|---|---|
| Frequency Range | 1 MHz – 1000 MHz |
| Output Power (Minimum) | 30 Watts CW Minimum |
| Gain | 50 dB Minimum |
| Gain Flatness | ±3 dB Maximum |
| Input for Rated Output | 0 dBm Maximum |
| Input VSWR | 2.0:1 Maximum |
| Output VSWR | 2.0:1 Maximum |
| Harmonic Distortion | -10 dBc Maximum at Rated Output |
| Input/Output Impedance | 50 Ohms |
| Power Requirements | 220 VAC, 50/60 Hz, Single Phase |
| Model | 30W1000B |
|---|

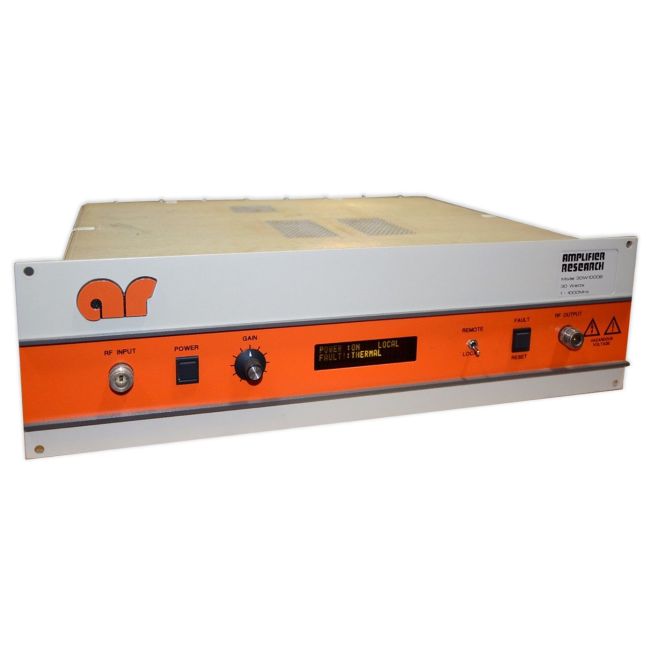

The Amplifier Research 30W1000B is a portable, self-contained, air-cooled broadband solid-state amplifier delivering a minimum of 30 W swept power. It employs push-pull circuitry in its high-power stages to minimize distortion and enhance stability, featuring a front-panel gain control and digital display for status and fault alerts. A built-in 8-bit RISC microprocessor provides precise local and remote control via IEEE-488 (GPIB) and full-duplex RS-232 interfaces.
Ideal for RF applications demanding instantaneous bandwidth and high gain, it offers protection against over-temperature, fan failure, or cooling obstruction via automatic DC cutoff.
Testwall can supply the used Amplifier Research 30W1000B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Amplifier Research 30W1000B.
