Amplifier Research 350S1G4
| Attribute | Value |
|---|---|
| Frequency Range | 0.8 GHz – 4.2 GHz |
| Output Power (Minimum Saturated) | 350 Watts |
| Gain (Minimum) | 50 dB |
| Input Power for Rated Output | 0 dBm (1 mW) |
| Noise Figure (Typical) | 8 dB |
| Input/Output Impedance | 50 Ohms |
| Input Connector | Type N Female |
| Output Connector | Type N Female |
| Power Requirements | 208 VAC, 3-Phase, 60 Hz |
| Cooling Method | Forced Air (Internal Blower) |
Amplifier Research 350S1G4 Options:
- 350S1G4 - M1 - Type N female on rear panel, Type 7/16 female on rear panel
- 350S1G4 - M2 - Enclosure removed for rack mounting, Type N female on front panel
- 350S1G4 - M3 - Enclosure removed for rack mounting, Type N female on rear panel
| Model | 350S1G4 |
|---|

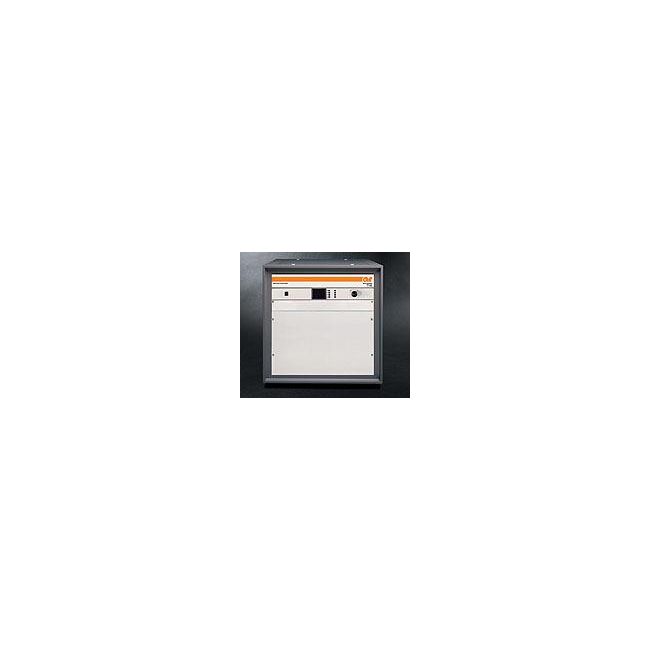

The Amplifier Research 350S1G4 is a portable, air-cooled, and solid-state broadband amplifier offering a frequency response from 0.8 to 4.2 GHz. With a minimum rated output power of 350 watts, gain of 55.5 dB, and low harmonic distortion, it ensures high linearity and performance. Its digital control panel (DCP) provides both local and remote control via USB, Ethernet, RS-232, and GPIB, with real-time monitoring of forward and reflected power. The amplifier’s rugged design includes full protection, gain control, and extensive reporting capabilities for reliable RF testing.
Engineered for EMC testing, wireless communication component evaluation, and multi-band test applications, the 350S1G4 reproduces AM, FM, and pulse modulation with precision. Its low spurious signals and mismatch tolerance make it suitable as both a primary RF test amplifier and a driver amplifier in complex test setups.
Testwall can supply the used Amplifier Research 350S1G4, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Amplifier Research 350S1G4.
