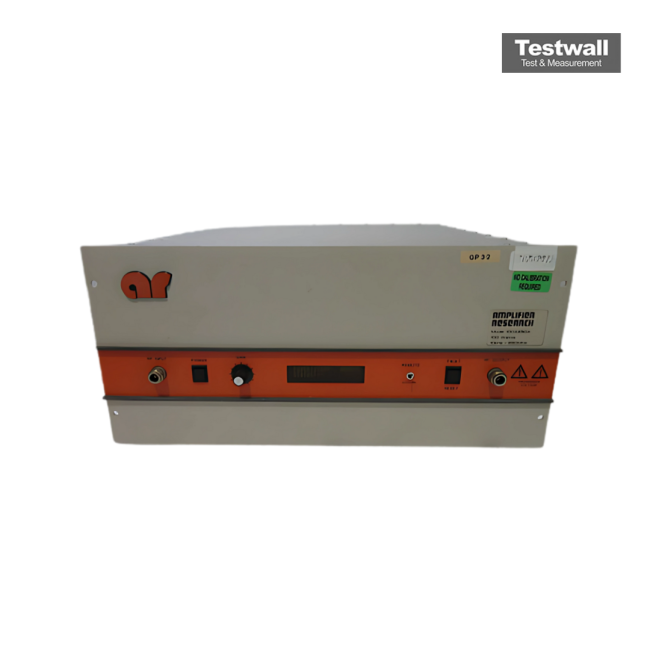

Amplifier Research 5000LP
| Attribute | Value |
|---|---|
| Frequency Range | DC to 500 MHz |
| Output Power | 5000 Watts CW |
| Gain | 50 dB minimum |
| Input Power for Rated Output | 50 mW typical |
| Input Impedance | 50 Ohms |
| Output Impedance | 50 Ohms |
| Harmonic Distortion | -20 dBc or less (second and third harmonics) |
| Power Requirements | 208 VAC, 3-phase, 50/60 Hz |
| Cooling Method | Forced air cooling |
| Connector Type | Type N female (input and output) |
| Model | 5000LP |
|---|
The Amplifier Research 5000LP is a high-power, pulse-optimized amplifier designed for multi-kilowatt energy delivery across low-frequency bands, depending on the specific variant (commonly 9–180 kHz or 10 kHz–250 MHz). Built with hybrid or ruggedized finals, it provides fast gating and blanking control, precise timing interfaces, and advanced overload protection for reliable operation in demanding environments.
Engineered for pulsed EMC and immunity testing, radar simulation, and high-energy laboratory use, the 5000LP ensures stable and repeatable pulse energy with controlled duty cycles and robust timing accuracy.
Testwall can supply the used Amplifier Research 5000LP, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Amplifier Research 5000LP.
