Amplifier Research 500S1G2Z5
| Attribute | Value |
|---|---|
| Frequency Range | 1 GHz – 2.5 GHz |
| Minimum Output Power | 500 Watts CW |
| Gain | 50 dB minimum |
| Input Power Required for Rated Output | 5 mW typical |
| Input Impedance | 50 Ohms |
| Output Impedance | 50 Ohms |
| Input Connector | Type N Female |
| Output Connector | Type N Female |
| Power Requirements | 208 VAC, 3 Phase, 50/60 Hz |
| Cooling Method | Forced Air Cooling |
Amplifier Research 500S1G2Z5 Options:
- 500S1G2Z5 - 500S1G2z5 - Standard model: N female RF input (front), 7/16 female RF output (front)
- 500S1G2Z5 - 500S1G2z5M1 - N female RF input (rear), 7/16 female RF output (rear)
- 500S1G2Z5 - 500S1G2z5M2 - Same as 500S1G2z5 with enclosure removed for rack mounting
- 500S1G2Z5 - 500S1G2z5M3 - Same as 500S1G2z5M1 with enclosure removed for rack mounting
| Model | 500S1G2Z5 |
|---|

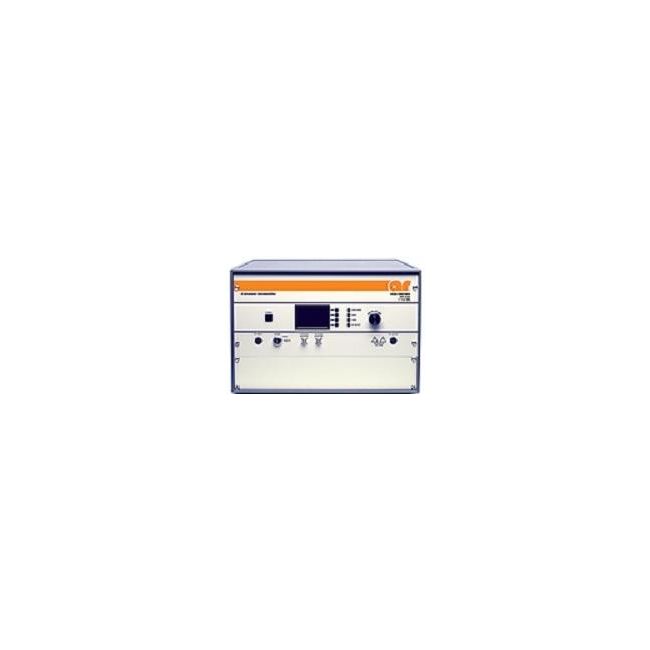

The Amplifier Research 500S1G2z5 is a broadband, air-cooled amplifier delivering a minimum of 500 watts RF output across 1.0 – 2.5 GHz with 57 dB gain. It features front panel gain control, digital display for status monitoring, and multiple remote interfaces including GPIB, RS-232, USB, and Ethernet. The unit provides outstanding linearity, low spurious signals, and protection against overdrive, over-temperature, and cooling failures.
Ideal for EMC testing, wireless communication systems, and as a driver amplifier, the Amplifier Research 500S1G2z5 supports AM, FM, and pulse modulation with high precision. It operates reliably with any load impedance without oscillation or damage, making it versatile for diverse RF applications.
Testwall can supply the used Amplifier Research 500S1G2z5, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Amplifier Research 500S1G2z5.
