Amplifier Research 500T1G2

AR 500T1G2 (call for availability)

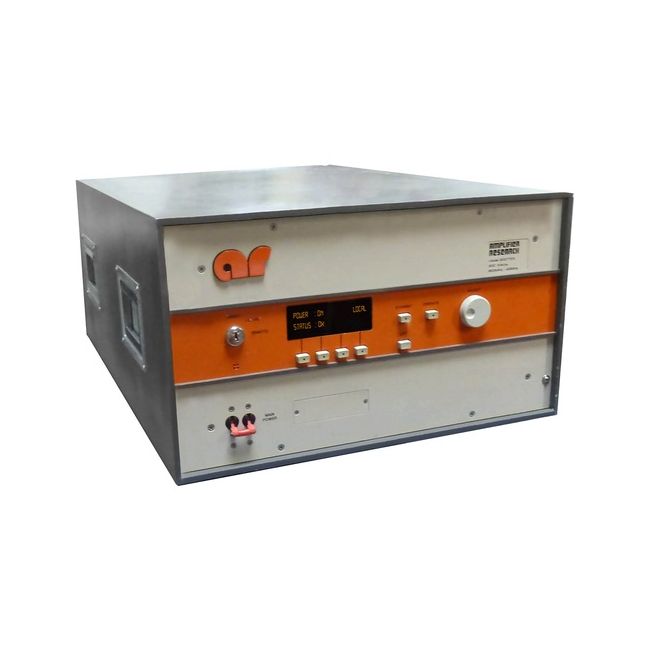

The Amplifier Research (AR) 500T1G2 is a self contained, forced air-cooled, broadband traveling wave tube (TWT) microwave amplifier designed for applications where instantaneous bandwidth and high gain are required. A reliable TWT provides a conservative 500 watts minimum at the amplifier output connector. Stated power specifications are at fundamental frequency.

The AR 500T1G2 Amplifier's front panel digital display shows forward and reflected output plus extensive system status information accessed through a series of menus via soft keys. Status indicators include power on, warm-up, standby, operate, faults, excess reflected power warning and remote. Standard features include a built-in IEEE-488 (GPIB) interface, 0dBm input, VSWR protection, gain control, RF output sample port, auto sleep, plus monitoring of TWT helix cur, cathode voltage, collector voltage, heater cur, heater voltage, base plate temperature and cabinet temperature.

The modular design of the AR 500T1G2 Amplifier's power supply and RF components allow for easy access and repair. Use of a switching mode power supply results in significant weight reduction.

Housed in a stylish contemporary cabinet, the AR 500T1G2 Amplifier is designed for benchtop use, but can be removed from the cabinet for rack mounting.  The AR 500T1G2 Amplifier provides readily available RF power for a variety of applications in Test and Measurement, (including EMC RF susceptibility testing), Industrial and University Research and Development, and Service applications.

Features and Specifications of the AR 250T1G3 Amplifier include:

Power (fundamental), CW, @ Output Connector:

• Nominal: 537 watts
• Minimum: 500 watts
• Linear @ 1 dB Compression: 125 watts minimum

Flatness:  ±8 dB maximum, equalized for ±5 dB maximum at rated power

Frequency Response: 1–2.5 GHz instantaneously

Input for Rated Output: 1.0 milliwatt maximum

Gain (at maximum setting): 57 dB minimum

Gain Adjustment (continuous range): 35 dB minimum

Input Impedance: 50 ohms, VSWR 2.0:1 maximum

Output Impedance: 50 ohms, VSWR 2.5:1 typical

Mismatch Tolerance: Output power fold back protection at reflected power exceeding 100 watts. Will operate without damage or oscillation with any magnitude and phase of source and load impedance. May oscillate with unshielded open due to coupling to input. Should not be tested with connector off.

Modulation Capability: Will faithfully reproduce AM, FM, or pulse modulation appearing on the input signal. AM peak envelope power limited to specified power.

Noise Power Density: Minus 80 dBm/Hz (maximum); Minus 87 dBm/Hz (typical)

Harmonic Distortion: Minus 3 dBc maximum; Minus 4 dBc typical

Connectors:

• RF input: Type N female on rear panel
• RF output: 7–16 DIN female on rear panel
• RF output sample port: Type N female on rear panel (Forward Power)
• GPIB: IEEE-488 (f)
• Interlock: DB15 on rear panel

Cooling: Forced air (self-contained fans), air entry and exit in rear.

Nominal: 537 watts

Minimum: 500 watts

Linear @ 1 dB Compression: 125 watts minimum

RF input: Type N female on rear panel

RF output: 7–16 DIN female on rear panel

RF output sample port: Type N female on rear panel (Forward Power)

GPIB: IEEE-488 (f)

Interlock: DB15 on rear panel
