Amplifier Research 500W1000A
| Attribute | Value |
|---|---|
| Frequency Range | 1 MHz – 1000 MHz |
| Output Power | 500 Watts CW Minimum |
| Gain | 63 dB Minimum |
| Gain Flatness | ±3 dB Maximum |
| Input for Rated Output | 5 mW (7 dBm) Maximum |
| Input VSWR | 2.0:1 Maximum |
| Output VSWR | 2.0:1 Maximum (into matched load) |
| Harmonic Distortion | -10 dBc Maximum |
| Power Requirements | 208/220 VAC, 3 Phase, 50/60 Hz |
| Cooling Method | Forced Air Cooling |
| Model | 500W1000A |
|---|

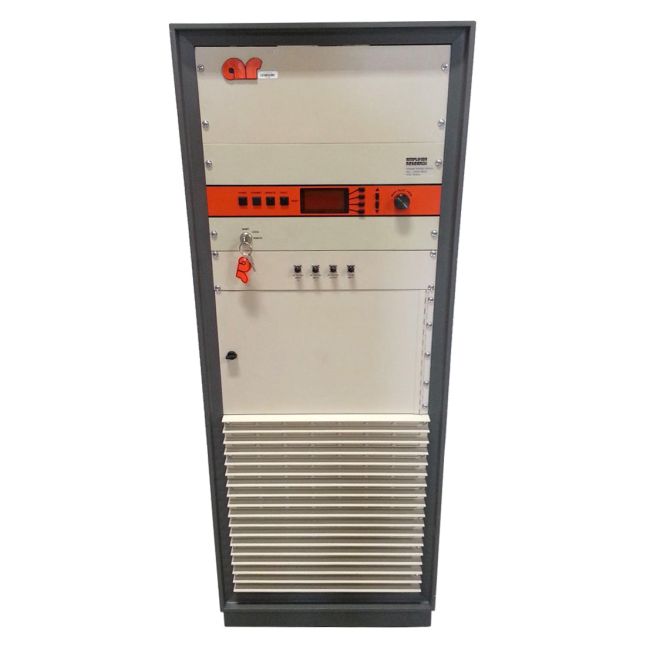

The Amplifier Research 500W1000A is a self-contained, air-cooled, broadband solid-state amplifier delivering a minimum of 500 W swept power with push-pull circuitry to reduce distortion and enhance stability—ideal for instantaneous bandwidth and high-gain RF applications.
It features a Digital Control Panel (DCP) for local and remote control with digital display, softkeys, a rotary knob, dedicated power/status switches (Power, Standby, Operate, Fault/Reset), forward/reflected power readout, gain control, ALC (internal/external) with front-panel threshold adjustment, pulse input, RF output level protection, and an internal RF detector for self-testing and operational feedback.
Testwall can supply the used Amplifier Research 500W1000A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Amplifier Research 500W1000A.
