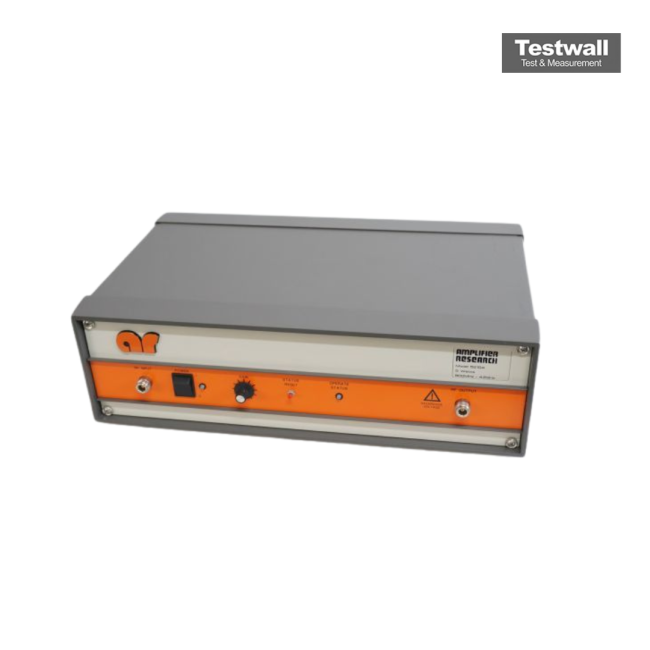

Amplifier Research 60S1G3M1
| Attribute | Value |
|---|---|
| Frequency Range | 1 GHz – 3 GHz |
| Minimum Output Power | 60 Watts CW |
| Gain | 50 dB minimum |
| Gain Flatness | ±3 dB maximum |
| Input for Rated Output | 0 dBm typical |
| Input VSWR | 2.0:1 maximum |
| Output VSWR | 2.0:1 maximum |
| Noise Figure | 12 dB typical |
| Power Requirements | 220 VAC, 50/60 Hz, Single Phase |
| Cooling Method | Forced Air Cooling |
| Model | 60S1G3M1 |
|---|
The Amplifier Research 60S1G3M1 operates across the 1 GHz to 3 GHz frequency band, delivering approximately 60 W CW output power. With solid-state linearity and an M1 prefix for entry-level monitoring, it provides extended bandwidth and reliable performance for demanding applications.
Designed for EMC compliance, wireless subsystem testing, and laboratory diagnostics, this amplifier ensures consistent results with dependable signal delivery and flexible evaluation options.
Testwall can supply the used Amplifier Research 60S1G3M1, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Amplifier Research 60S1G3M1.
