Amplifier Research 75S6G18C
| Attribute | Value |
|---|---|
| Frequency Range | 6 GHz to 18 GHz |
| Minimum Output Power | 75 Watts |
| Gain | 50 dB minimum |
| Input Power for Rated Output | 0 dBm typical |
| Input VSWR | 2.0:1 maximum |
| Output VSWR | 2.0:1 maximum |
| Noise Figure | 12 dB typical |
| Power Supply | 208/220 VAC, 3-phase, 50/60 Hz |
| Cooling Method | Forced air (internal blower) |
| Connectors | SMA female (input), Type N female (output) |
Amplifier Research 75S6G18C Options:
- 75S6G18C - F-N - RF IN Connector Location: Front, Type: N
- 75S6G18C - R-N - RF IN Connector Location: Rear, Type: N
- 75S6G18C - F-N - RF OUT Connector Location: Front, Type: N
- 75S6G18C - R-N - RF OUT Connector Location: Rear, Type: N
- 75S6G18C - E - Enclosure
- 75S6G18C - NE - No Enclosure
| Model | 75S6G18C |
|---|

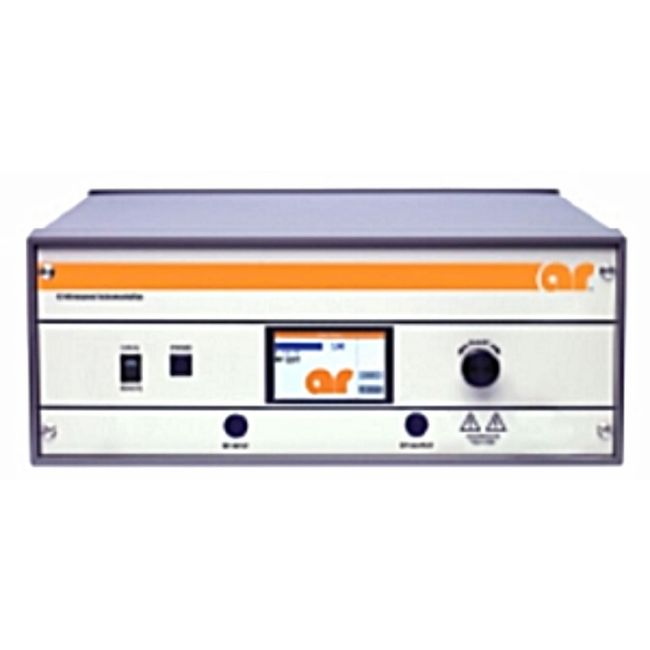

The Amplifier Research 75S6G18C Microwave Solid State Amplifier is a Class A, air-cooled, self-contained broadband amplifier delivering 75 W from 6.0–12.0 GHz and 65 W from 12.0–18.0 GHz. It provides low spurious levels, harmonic distortion of -25 dBc, and full protection against overdrive, over-temperature, and power supply faults, ensuring stable and reliable operation.
With excellent linearity and wide bandwidth, the Amplifier Research 75S6G18C is ideal for driving wireless and communication component testing across technologies like CDMA, W-CDMA, TDMA, GSM, UWB, and WiMAX. Remote operation is supported via GPIB/IEEE-488, RS-232, USB, fiber-optic serial, and Ethernet interfaces.
Testwall can supply the used Amplifier Research 75S6G18C, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Amplifier Research 75S6G18C.
