Amplifier Research DC3002A
| Attribute | Value |
|---|---|
| Frequency Range | DC - 3000 MHz |
| Gain | 30 dB |
| Output Power (P1dB) | 2 W (33 dBm) |
| Input Power for Rated Output | 0 dBm |
| Noise Figure | 8 dB typical |
| Input/Output Impedance | 50 Ohms |
| Input Connector | SMA Female |
| Output Connector | SMA Female |
| Power Supply | +24 VDC |
| Operating Temperature | 0°C to +50°C |
Amplifier Research DC3002A Options:
- DC3002A - DC3002A - Mainline: N(M)/N(F), Coupled: N(F)/N(F)
- DC3002A - DC3002 - Mainline: N(F)/N(F), Coupled: SMA(F)/SMA(F)
- DC3002A - DC3002M1 - Mainline: N(F)/N(F), Coupled: BNC(F)/BNC(F)
- DC3002A - DC3002M2 - Mainline: N(F)/N(F), Coupled: N(F)/N(F)
| Model | DC3002A |
|---|

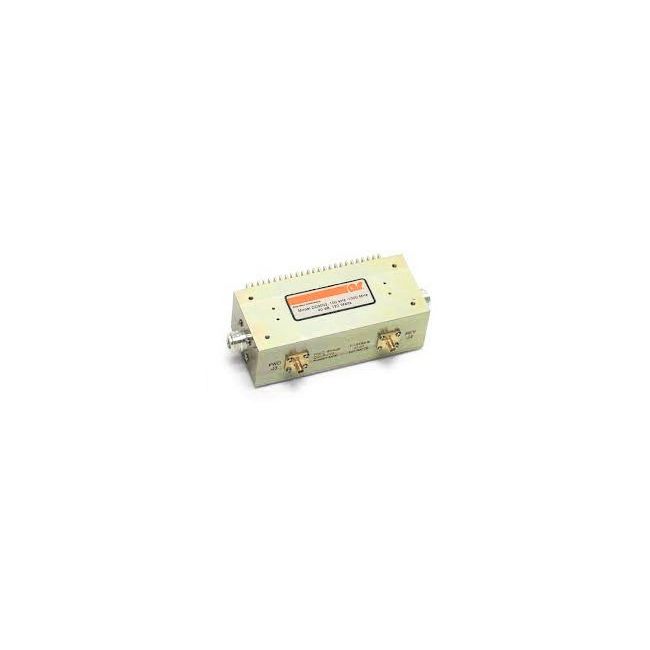

The Amplifier Research DC3002A is a high‑power, ultra‑broadband dual directional coupler spanning over 14 octaves, engineered for exceptional linearity and reliability in demanding RF environments. It enables precise, simultaneous monitoring of forward and reflected power using standard lab instruments like oscilloscopes, voltmeters, power meters, and spectrum analyzers.
This versatile coupler integrates effortlessly with "W" Series amplifiers and other units operating within its extensive frequency and power range, delivering consistent, clear measurements across varied setups.
Testwall can supply the used Amplifier Research DC3002A, fully tested. With expert support and global delivery, Testwall ensures high‑performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Amplifier Research DC3002A.
