Amplifier Research DC3510A
| Attribute | Value |
|---|---|
| Frequency Range | DC - 35 MHz |
| Gain | 10 dB |
| Output Power | 10 Watts CW |
| Input Impedance | 50 Ohms |
| Output Impedance | 50 Ohms |
| Input Voltage (AC) | 105-125V / 210-250V, 50/60 Hz |
| Noise Figure | Less than 15 dB typical |
| Input Connector | BNC Female |
| Output Connector | Type N Female |
| Operating Temperature | 0°C to 50°C |
| Model | DC3510A |
|---|

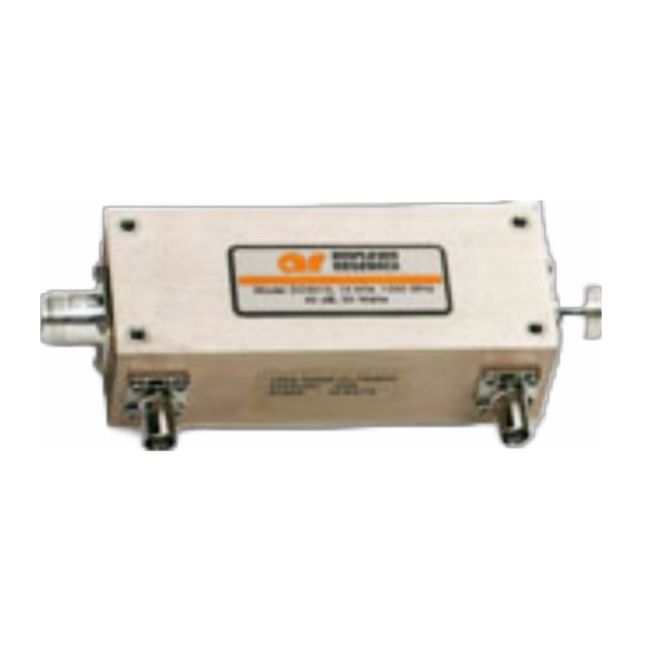

The Amplifier Research DC3510A Dual Directional Coupler delivers high‑power, ultra‑broadband performance from 9 kHz to 1000 MHz, supporting up to 500 W CW and 1000 W peak in 50 Ω systems with low insertion loss (0.5 dB max), excellent directivity (~25 dB typical), and selectable coupling factors of 40 dB or 50 dB.
Designed for seamless integration with AR “A”, “L”, and “W” series amplifiers, compatible third‑party amplifiers, and the Amplifier Research PM2002 power meter, it enables simultaneous forward and reflected power monitoring via standard lab oscilloscopes, voltmeters, power meters, or spectrum analyzers.
Testwall can supply the used Amplifier Research DC3510A, fully tested. With expert support and global delivery, Testwall ensures high‑performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Amplifier Research DC3510A.
