Amplifier Research DC7144A
| Attribute | Value |
|---|---|
| Frequency Range | DC - 1 GHz |
| Gain | 44 dB |
| Output Power (P1dB) | 1 Watt (30 dBm) |
| Input Power for Rated Output | -14 dBm |
| Noise Figure | 8 dB typical |
| Input/Output Impedance | 50 Ohms |
| Input Connector | SMA Female |
| Output Connector | SMA Female |
| Power Supply | +15 VDC |
| Operating Temperature | 0°C to +65°C |
Amplifier Research DC7144A Options:
- DC7144A - DC7144A - Main Line N(M)/N(F), Coupled Connector N(F)/N(F)
- DC7144A - DC7144AM1 - Main Line N(M)/N(F), Coupled Connector N(F)/N(F), Uses A2LA Calibration
- DC7144A - DC7144 - Main Line N(F)/N(F), Coupled Connector SMA(F)/SMA(F)
- DC7144A - DC7144M1 - Main Line N(F)/N(F), Coupled Connector N(F)/N(F)
- DC7144A - DC7144M2 - Main Line N(F)/N(F), Coupled Connector SMA(F)/SMA(F), Uses A2LA Calibration
- DC7144A - DC7144M3 - Main Line N(F)/N(F), Coupled Connector N(F)/N(F), Uses A2LA Calibration
| Model | DC7144A |
|---|

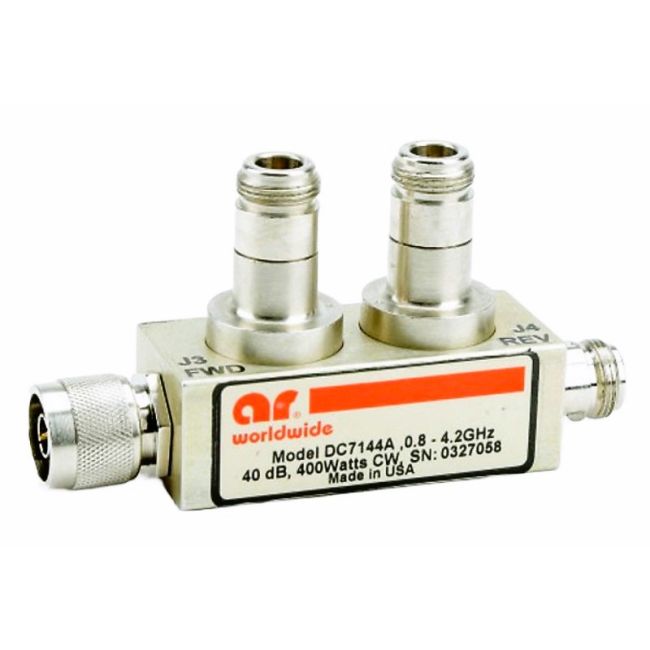

The Amplifier Research DC7144A is a dual directional coupler designed with a frequency range of 0.7–4.2 GHz, handling up to 400 W CW and 4 kW peak power at 5% duty cycle with a 30 µs pulse. It offers a 40 dB ±1.3 dB coupling factor, 0.8 dB flatness, and directivity of 19 dB typical (15 dB minimum). With an insertion loss of just 0.4 dB and a 50-ohm impedance, the DC7144A ensures minimal signal degradation while maintaining a VSWR of 1.25:1 maximum.
Its dual directional design enables simultaneous monitoring of forward and reflected power, making it indispensable for RF susceptibility testing, amplifier overdrive protection, load safeguarding, and field control applications. It is ideally matched with AR 'S' series amplifiers and compatible instruments like the PM2003 power meter.
Testwall can supply the used Amplifier Research DC7144A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Amplifier Research DC7144A.
