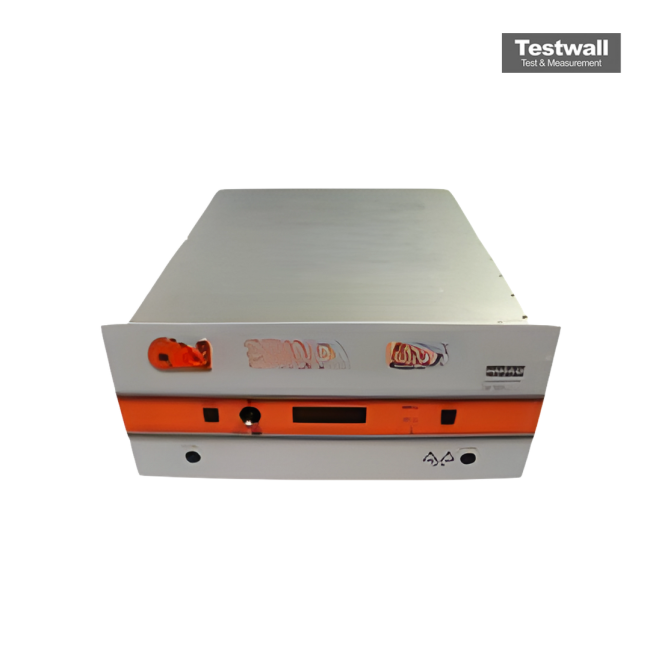

Amplifier Research KAW3060
| Attribute | Value |
|---|---|
| Frequency Range | 10 kHz – 3 MHz |
| Output Power | 60 Watts CW minimum |
| Gain | 60 dB minimum |
| Input Impedance | 50 Ohms |
| Output Impedance | 50 Ohms |
| Input VSWR | 2.0:1 maximum |
| Harmonic Distortion | -10 dBc maximum |
| Power Requirements | 220 VAC, 50/60 Hz, Single Phase |
| Cooling Method | Forced Air Cooling |
| Connector Type | Type N Female (Input and Output) |
| Model | KAW3060 |
|---|
The Amplifier Research KAW3060 is a Class AB RF power amplifier delivering over 300 W CW output across the 400 MHz to 1000 MHz frequency range, with at least 54 dB of power gain. It features front-panel analog meters for forward and reflected power, Automatic Level Control (ALC), RF gain adjustment, complete VSWR and overdrive protection, input blanking, thermal safeguards, and a 25-pin D-sub connector for remote operation.
Designed for EMC immunity testing, communication systems, and laboratory environments, the KAW3060 combines high-power output with precise control and reliable protection features.
Testwall can supply the used Amplifier Research KAW3060, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Amplifier Research KAW3060.
