Anritsu

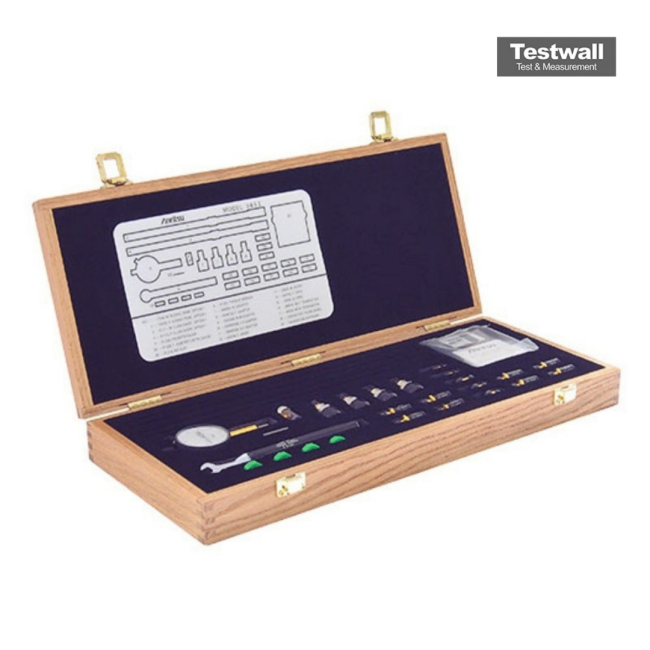

Anritsu 3650
Calibration Kit
DC to 18 GHz Frequency Range
3.5 mm (m) Connector Type
50 Ohm Impedance
1.25 maximum VSWR
0.07 dB maximum at 18 GHz Insertion Loss
| Attribute | Value |
|---|---|
| Frequency Range | DC to 18 GHz |
| Connector Type | 3.5 mm (m) |
| Impedance | 50 Ohm |
| VSWR | 1.25 maximum |
| Insertion Loss | 0.07 dB maximum at 18 GHz |
| Mating Cycles | Minimum 2000 mating cycles |
| Center Contact Material | Beryllium Copper with Gold Plating |
| Outer Contact Material | Stainless Steel with Gold Plating |
| Operating Temperature | -65°C to +165°C |
| Compatible Interface | Compatible with SMA and 3.5 mm connectors |
Anritsu 3650 Options:
- 3650 - Option 1 - Adds sliding terminations (17SF50 Female Sliding Termination, 17S50 Male Sliding Termination, 01-212 Female Flush Short, 01-211 Male Flush Short)
| Model | 3650 |
|---|
The Anritsu 3650 is an RF test fixture designed to support Site Master and network analyzers. It enables precise signal routing, coupling, and impedance matching for accurate cable and antenna testing. Its compact build ensures reliable performance for both lab and field deployment.
Ideal for calibration support and RF connectivity tasks, the Anritsu 3650 ensures repeatable measurements with consistent connector alignment and impedance stability.
Testwall can supply the used Anritsu 3650, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu 3650.
