Anritsu 3680V
| Attribute | Value |
|---|---|
| Frequency Range | DC to 65 GHz |
| Connector Type | Universal (V) Connector |
| Impedance | 50 Ohm |
| VSWR | 1.25 max |
| Insertion Loss | 0.3 dB max at 65 GHz |
| Contact Resistance | 3 m Ohm max |
| Durability | 2000 mating cycles |
| Center Conductor Material | Beryllium Copper |
| Body Material | Stainless Steel |
| Compatible Connector Interface | Compatible with 2.4 mm and 2.92 mm connectors |
Anritsu 3680V Options:
- 3680V - 36801V - 60 GHz Right-Angle Launcher
- 3680V - 36802 - MMIC Attachment
- 3680V - 36803 - Bias Probe
- 3680V - 36805-10M - 10 mil Substrate Launchers for 36802 MMIC Attachment
- 3680V - 36805-15M - 15 mil Substrate Launchers for 36802 MMIC Attachment
- 3680V - 36805-25M - 25 mil Substrate Launchers for 36802 MMIC Attachment
- 3680V - 36804B-10M - 10 mil Microstrip Calibration/Verification Kit, DC to 50 GHz
- 3680V - 36804B-15M - 15 mil Microstrip Calibration/Verification Kit, DC to 30 GHz
- 3680V - 36804B-25M - 25 mil Microstrip Calibration/Verification Kit, DC to 15 GHz
- 3680V - 36804-25C - 25 mil CPW Calibration/Verification Kit, DC to 20 GHz (Includes CPW jaws)
| Model | 3680V |
|---|

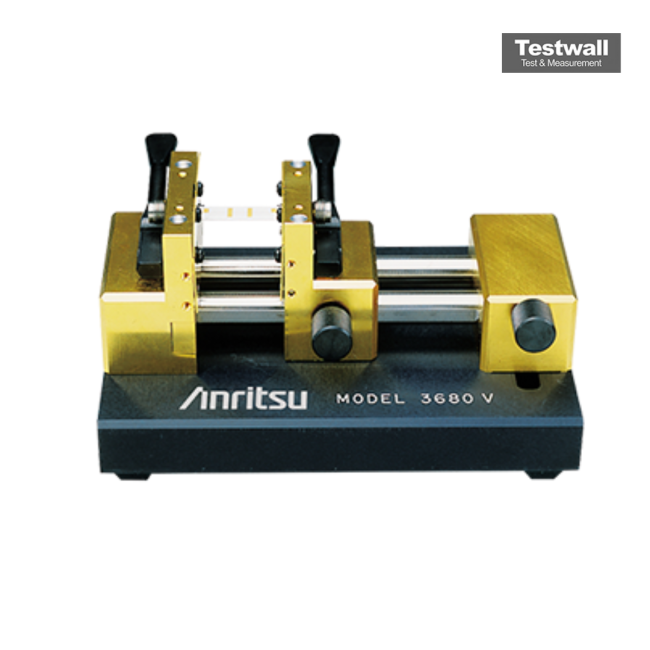

The Anritsu 3680V Universal Test Fixture offers precise and repeatable measurements for microstrip and coplanar substrate devices with a wide DC to 60 GHz coverage. It supports offset and right-angle test devices, optional MMIC measurements, and provides flexibility with bias capability. Substrate length ranges from 0.5 cm to 5 cm (10 cm with 3680-20), and thickness from 0.012 cm to 0.19 cm, accommodating versatile testing needs.
Ideal for microstrip and coplanar measurements, the 3680V ensures accurate testing of substrates with optional calibration/verification kits. Its compact design, 10 x 12.7 x 6.4 cm, makes it highly adaptable for advanced RF and microwave testing requirements.
Testwall can supply the used Anritsu 3680V Universal Test Fixture, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu 3680V Universal Test Fixture.
