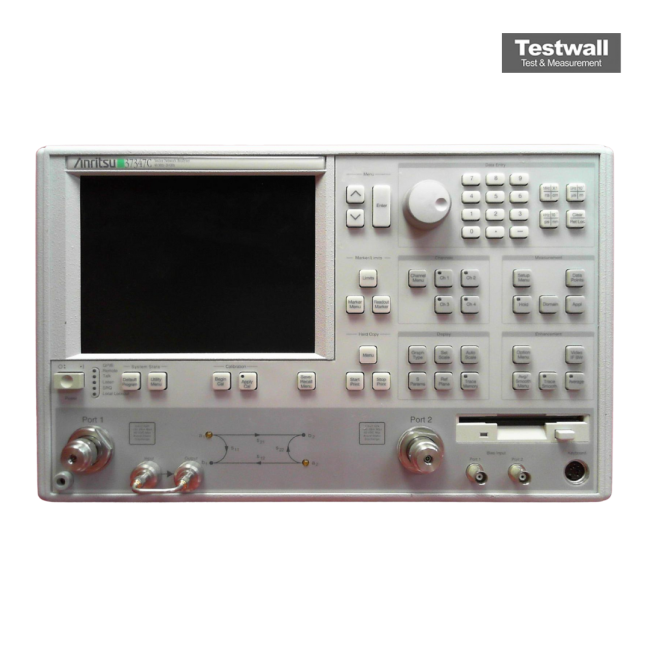

Anritsu 37347C
| Attribute | Value |
|---|---|
| Frequency Range | 40 MHz to 20 GHz |
| Dynamic Range | Up to 100 dB |
| Output Power Range | -10 dBm to +10 dBm |
| Number of Ports | 2-Port Vector Network Analyzer |
| Connector Type | 3.5 mm (SMA compatible) |
| Measurement Parameters | S11, S21, S12, S22 (Full 2-Port S-Parameters) |
| Sweep Points | 2 to 1601 points |
| Trace Noise | Less than 0.005 dB RMS |
| Display | 10.4-inch color LCD display |
| Interface/Connectivity | GPIB, RS-232, and Parallel Printer Port |
| Model | 37347C |
|---|
The Anritsu 37347C network analyzer is a vector network analyzer operating from 40 MHz to 20 GHz. It provides fast sweeping synthesized sources, four independent display channels, a four-channel receiver, and built-in AutoCal control. With LRL/LRM calibration, adapter removal calibration, and high measurement throughput via GPIB, it ensures precise analysis of magnitude, phase, and group delay across wide frequencies.
Engineered for two-port devices, the 37347C measures reflection and transmission coefficients, offering reliable performance with dynamic ranges up to 123 dB and noise floors as low as -93 dBm. Its multiple source control and storage options enhance flexibility in demanding RF testing applications.
Testwall can supply the used Anritsu 37347C, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu 37347C.
