Anritsu 37397C
| Attribute | Value |
|---|---|
| Frequency Range | 40 MHz to 65 GHz |
| Number of Ports | 2-Port Vector Network Analyzer |
| Dynamic Range | Up to 100 dB |
| Output Power Range | -20 dBm to +10 dBm |
| Measurement Parameters | S-Parameters (S11, S21, S12, S22), impedance, admittance, and group delay |
| Connector Type | 1.85 mm (V-connector) precision coaxial connectors |
| Sweep Points | 2 to 1601 points per sweep |
| Sweep Types | Linear frequency, log frequency, power, and CW time sweeps |
| IF Bandwidth | 1 Hz to 30 kHz selectable intermediate frequency bandwidth |
| Calibration Methods | Full 2-port SOLT, LRL/LRM, TRL/TRM, and AutoCal supported |
| Model | 37397C |
|---|

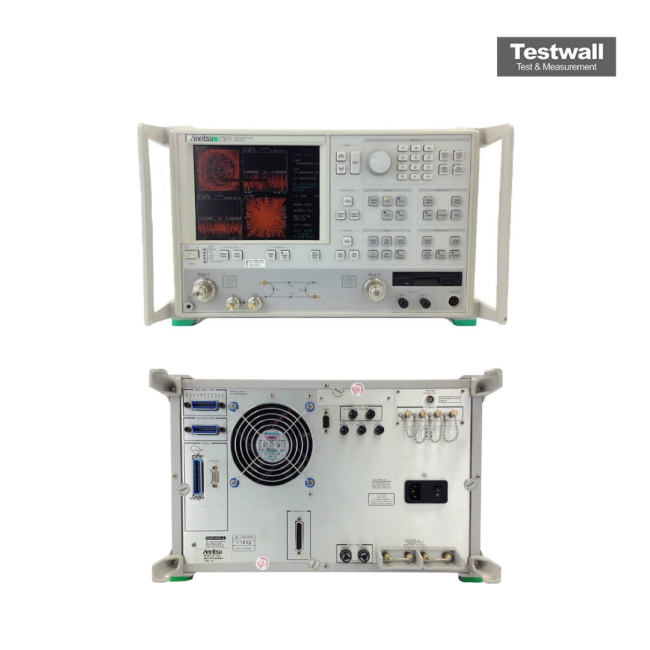

The Anritsu Lightning 37397C Vector Network Analyzer is engineered for precise S-parameter measurements from 22.5 MHz to 65 GHz. It integrates a fast-sweeping synthesized source, S-parameter test set, and tuned receiver in a compact unit. Featuring four independent display channels, multiple source control, LRL/LRM calibration, and adapter removal calibrations, the 37397C ensures superior performance for demanding RF and microwave applications.
With high measurement throughput enabled by 12-term error correction, GPIB data transfers, and AutoCal control, this VNA delivers reliable results for active and passive device testing. Its upgradeable architecture supports evolving requirements in advanced research and production environments.
Testwall can supply the used Anritsu 37397C, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu 37397C.
