Anritsu 54107A
| Attribute | Value |
|---|---|
| Frequency Range | DC to 18 GHz |
| Connector Type | Type-K (2.92mm) |
| VSWR | 1.25 max |
| Insertion Loss | 0.5 dB max at 18 GHz |
| Impedance | 50 Ohms |
| Power Handling | 1W average |
| Operating Temperature | -54°C to +125°C |
| Coupling | Directional Coupler |
| Coupling Factor | 10 dB nominal |
| Directivity | 23 dB minimum |
Anritsu 54107A Options:
- 54107A - Option 1 - Rack mounting with slides
- 54107A - Option 2 - 70 dB RF step attenuator
- 54107A - Option 2A - 70 dB, 20 GHz MW step attenuator
- 54107A - Option 2B - 70 dB, 26.5 GHz MW step attenuator
- 54107A - Option 2C - 70 dB, 40 GHz MW step attenuator
- 54107A - Option 2D - 70 dB, 50 GHz MW step attenuator
- 54107A - Option 4 - 75 Ω source output (available to 3.0 GHz)
- 54107A - Option 5 - Add reference channel
- 54107A - Option 6 - Add external levelling
- 54107A - Option 7 - Internal distance-to-fault software
- 54107A - Option 8 - Internal relative group delay software
- 54107A - Option 12 - Add front panel cover
- 54107A - Option 13 - Add front mounted handles
- 54107A - Option 16 - +15 V DC supply for millimeter wave source modules (available with <20 GHz models only)
- 54107A - Option 25 - Maintenance manual
- 54107A - Option 26 - Extra operation and GPIB programming manual
- 54107A - Option 33 - Canon printer
| Model | 54107A |
|---|

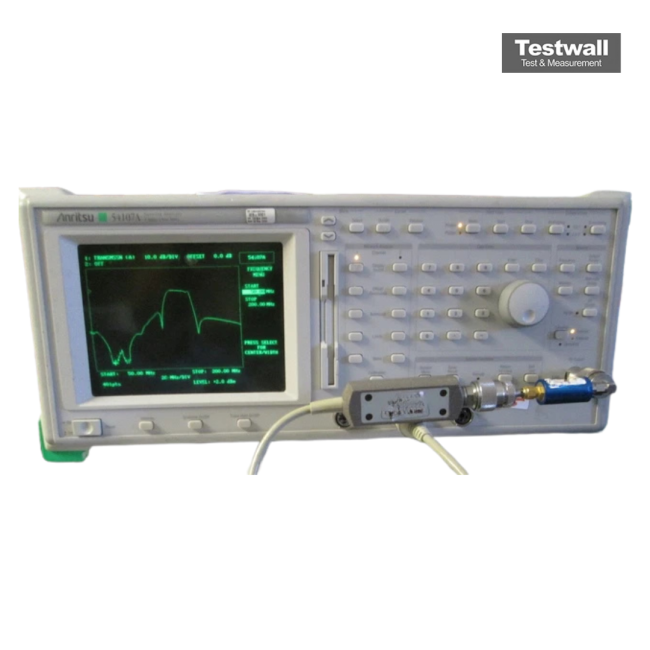

The Anritsu 54107A Network Analyzer from the 54100A series delivers precise characterization of RF and microwave components, including amplifiers, antennas, couplers, isolators, mixers, and filters. It ensures accurate measurement of transmission, return loss, SWR, group delay, absolute power, and distance-to-fault. With a crystal-based source, low source harmonics, high-directivity SWR autotesters, and advanced hardware-software integration, the unit guarantees stability, accuracy, and productivity enhancement.
Equipped with automation features such as fast recall mode, automated bandwidth search, sophisticated limit line controls, and built-in distance-to-fault functions, the analyzer simplifies complex RF testing while ensuring fast, repeatable, and reliable results. The rugged chassis and built-in floppy disk drive add further convenience and durability.
Testwall can supply the used Anritsu 54107A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu 54107A.
