Anritsu 560-7N50B
| Attribute | Value |
|---|---|
| Frequency Range | DC to 50 GHz |
| Connector Type | N (f) to 2.4mm (m) |
| Impedance | 50 Ohm |
| VSWR | 1.25 max |
| Insertion Loss | 0.3 dB max |
| Maximum Input Power | 1 W average |
| Adapter Type | Between Series |
| Body Material | Stainless Steel |
| Contact Material | Beryllium Copper |
| Operating Temperature | -54°C to +125°C |
| Model | 560-7N50B |
|---|

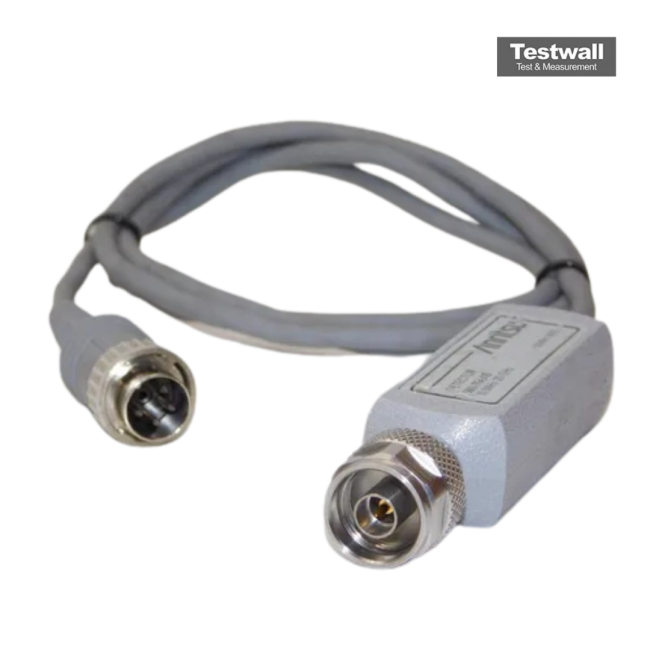

The Anritsu 560-7N50B RF Detector operates across 0.01 to 20 GHz with 50 Ohms impedance, delivering high accuracy in coaxial transmission loss, gain, and power measurements. It offers return loss values of 15 dB (<0.04 GHz), 22 dB (<8 GHz), 17 dB (<18 GHz), and 14 dB (<20 GHz), with a precise frequency response of ±0.5 dB up to 18 GHz and ±1.25 dB up to 20 GHz, using an N(m) input connector.
This RF Detector is designed for use with the Model 56100A Scalar Network Analyzer, Series 54100A Scalar Measurement System, and compatible Site Master and Cable Mate Testers, providing versatile measurement capabilities.
Testwall can supply the used Anritsu 560-7N50B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu 560-7N50B.
