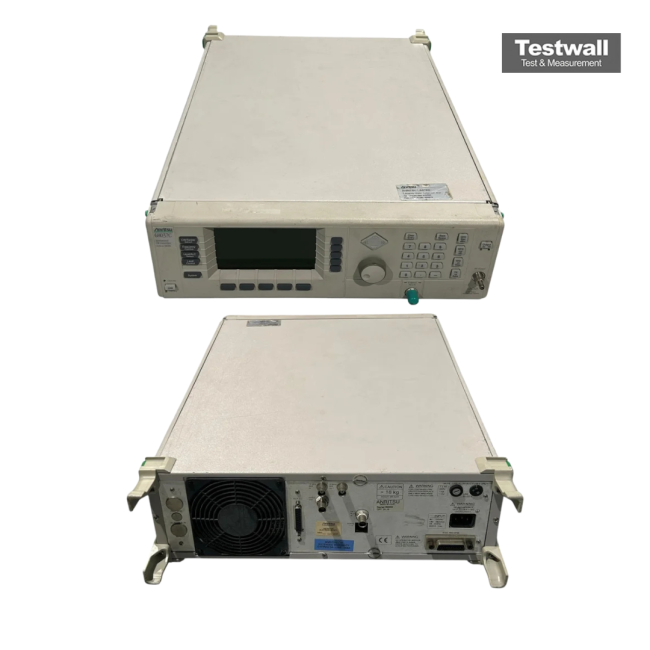

Anritsu 68037C
| Attribute | Value |
|---|---|
| Frequency Range | 10 MHz to 20 GHz |
| Output Power Range | -20 dBm to +20 dBm |
| Frequency Resolution | 1 Hz |
| Phase Noise | -116 dBc/Hz at 10 kHz offset (typical) |
| Switching Speed | less than 10 ms |
| Spectral Purity (Harmonics) | -30 dBc typical |
| Modulation Types | AM, FM, Phase, and Pulse Modulation |
| Output Connector | Type-N Female (50 Ohm) |
| Reference Frequency | 10 MHz internal/external timebase |
| Power Requirements | 100-240 VAC, 50/60 Hz |
| Model | 68037C |
|---|
The Anritsu 68037C from the 68C/69B series offers exceptional synthesized CW generation with a broad frequency range from 0.1 Hz to 65 GHz in a single coaxial output. It delivers ultra-low SSB phase noise, spurious suppression, and guaranteed +17 dBm leveled power up to 20 GHz. Featuring 0.1 Hz resolution, accurate power levels down to –120 dBm in 0.01 dB steps, and <5 ms switching time, this unit is ideal for demanding A.T.E. applications requiring precision and speed.
The generator supports digital frequency and power sweeps, intuitive menu navigation, and optional SCPI programmability with free LabView® and IVICOM drivers, saving time and simplifying automation in measurement environments.
Testwall can supply the used Anritsu 68037C, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu 68037C.
