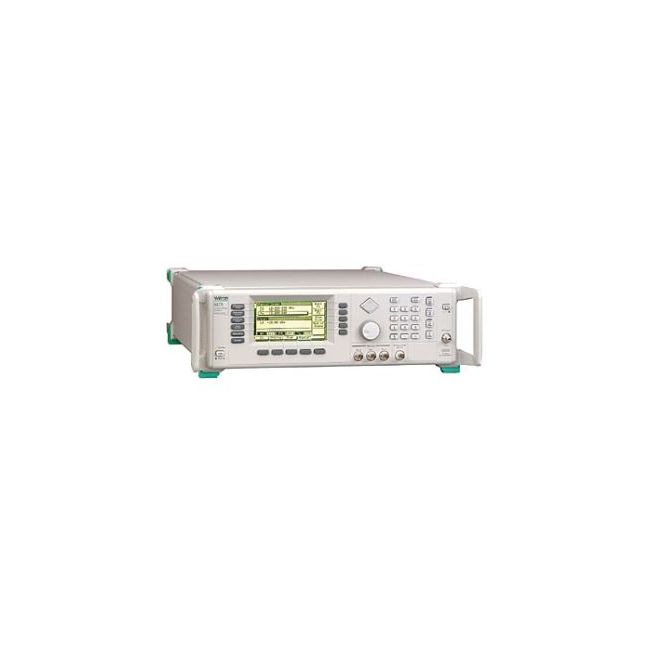

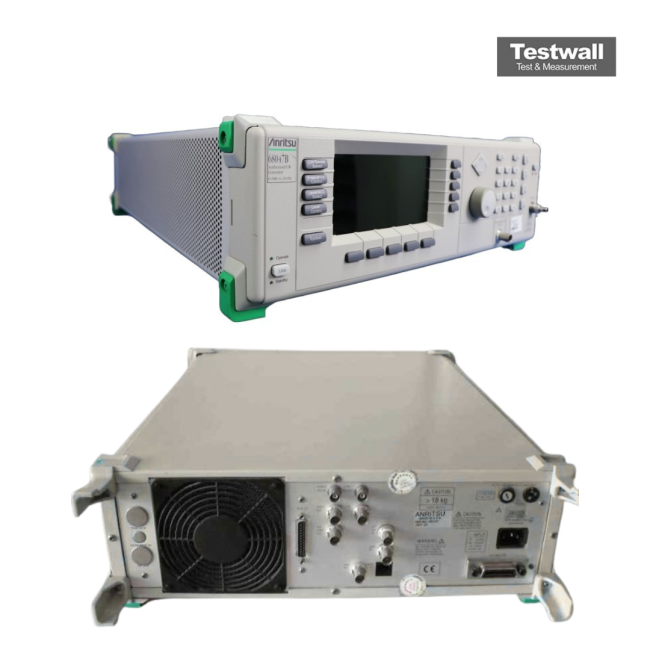

Anritsu 68047B
| Attribute | Value |
|---|---|
| Frequency Range | 10 MHz to 20 GHz |
| Output Power Range | -20 dBm to +17 dBm |
| Frequency Resolution | 1 Hz |
| Phase Noise | -116 dBc/Hz at 20 kHz offset (typical) |
| Spectral Purity (Harmonics) | -30 dBc or better |
| Frequency Switching Speed | Less than 5 ms (typical) |
| Output Connector | Type-N (female) |
| Power Supply | 90–264 VAC, 47–63 Hz |
| Operating Temperature | 0°C to +55°C |
| Interface/Control | GPIB (IEEE-488), RS-232 |
Anritsu 68047B Options:
- 68047B - Option 1 - Rack mounting kit, includes one set of track slides (90° tilt capability), mounting ears, and front panel handles for mounting in a standard 19-inch equipment rack
- 68047B - Option 2A - Step attenuator (10 dB/step, high-end frequency of ≤26.5 GHz, rated output power is reduced)
- 68047B - Option 2B - Step attenuator (10 dB/step, high-end frequency of ≤40 GHz, rated output power is reduced)
- 68047B - Option 2C - Step attenuator (10 dB/step, high-end frequency of ≤50 GHz, rated output power is reduced)
- 68047B - Option 2D - Step attenuator (10 dB/step, high-end frequency of ≤60 GHz, rated output power is reduced)
- 68047B - Option 9 - Rear panel RF output (moves RF output connector to the rear panel)
- 68047B - Option 11 - 0.1 Hz frequency resolution (provides frequency resolution of 0.1 Hz)
- 68047B - Option 14 - Wiltron 360B VNA compatibility (modifies rack mounting hardware to mate unit in Wiltron 360B VNA console)
- 68047B - Option 16 - High stability time base (adds an ovenized, 10 MHz crystal oscillator as a high-stability time base)
- 68047B - Option 17 - Delete front panel (deletes the front panel for use in remote control applications where a front panel display and keyboard control are not needed)
- 68047B - Option 18 - MM-wave bias (rear panel bias output to drive 54000-XX WRXX multiplier, BNC twinax; not available with Option 20)
- 68047B - Option 19 - SCPI programmability adds GPIB command mnemonics complying with Standard Commands for Programmable Instruments (SCPI), Version 1993.0; SCPI programming complies with IEEE 488.2-1987
| Model | 68047B |
|---|
The Anritsu 68047B is a precision calibration adapter designed for use with Anritsu RF test platforms. It ensures highly accurate signal referencing and supports connector conversion for versatile test configurations. Built for rack or bench use, this adapter provides stable performance for demanding laboratory and field verification tasks.
Engineered for compatibility with network analyzers and signal generators, it plays a critical role in maintaining measurement accuracy across diverse test setups. Ideal for calibration and precision verification processes.
Testwall can supply the used Anritsu 68047B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu 68047B.
