Anritsu 68347B
| Attribute | Value |
|---|---|
| Frequency Range | 10 MHz to 20 GHz |
| Output Power Range | -20 dBm to +17 dBm |
| Frequency Resolution | 1 Hz |
| Phase Noise | -80 dBc/Hz at 10 kHz offset (typical) |
| Spectral Purity (Harmonics) | -30 dBc typical |
| Frequency Switching Speed | Less than 10 ms typical |
| Output Connector | Type-N Female (50 Ohm) |
| Modulation Capabilities | AM, FM, Phase Modulation, Pulse Modulation |
| Power Supply | 100-240 VAC, 50/60 Hz |
| Operating Temperature | 0°C to 55°C |
Anritsu 68347B Options:
- 68347B - Option 1 - Rack mounting kit, includes one set of track slides (90° tilt capability), mounting ears, and front panel handles for mounting in a standard 19-inch equipment rack
- 68347B - Option 2A - Step attenuator (10 dB/step, high-end frequency of ≤26.5 GHz, rated output power is reduced)
- 68347B - Option 2B - Step attenuator (10 dB/step, high-end frequency of ≤40 GHz, rated output power is reduced)
- 68347B - Option 2C - Step attenuator (10 dB/step, high-end frequency of ≤50 GHz, rated output power is reduced)
- 68347B - Option 2D - Step attenuator (10 dB/step, high-end frequency of ≤60 GHz, rated output power is reduced)
- 68347B - Option 7 - Deletes the internal AM and FM generators; external AM and FM capability remains unchanged. Not available in combination with Option 6, 8, 10 or 20
- 68347B - Option 9 - Rear panel RF output (moves RF output connector to the rear panel)
- 68347B - Option 11 - 0.1 Hz frequency resolution (provides frequency resolution of 0.1 Hz)
- 68347B - Option 14 - Wiltron 360B VNA compatibility (modifies rack mounting hardware to mate unit in Wiltron 360B VNA console)
- 68347B - Option 15 - High power output (provides high-power from 2 to 26.5 GHz)
- 68347B - Option 16 - High stability time base (adds an ovenized, 10 MHz crystal oscillator as a high-stability time base)
- 68347B - Option 17 - Delete front panel (deletes the front panel for use in remote control applications where a front panel display and keyboard control are not needed)
- 68347B - Option 18 - MM-wave bias (rear panel bias output to drive 54000-XX WRXX multiplier. BNC twinax; not available with Option 20)
- 68347B - Option 19 - SCPI programmability adds GPIB command mnemonics complying with Standard Commands for Programmable Instruments (SCPI), Version 1993.0. SCPI programming complies with IEEE 488.2–1987
- 68347B - Option 20 - SCAN modulator (adds an internal SCAN modulator for simulating high-depth amplitude modulated signals; requires an external modulating signal input; not available in combination with Option 7 or Option 18)
| Model | 68347B |
|---|

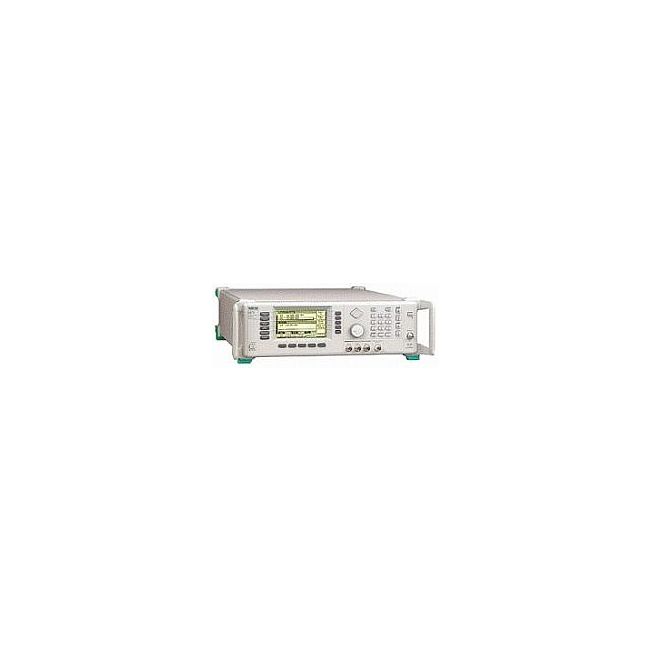

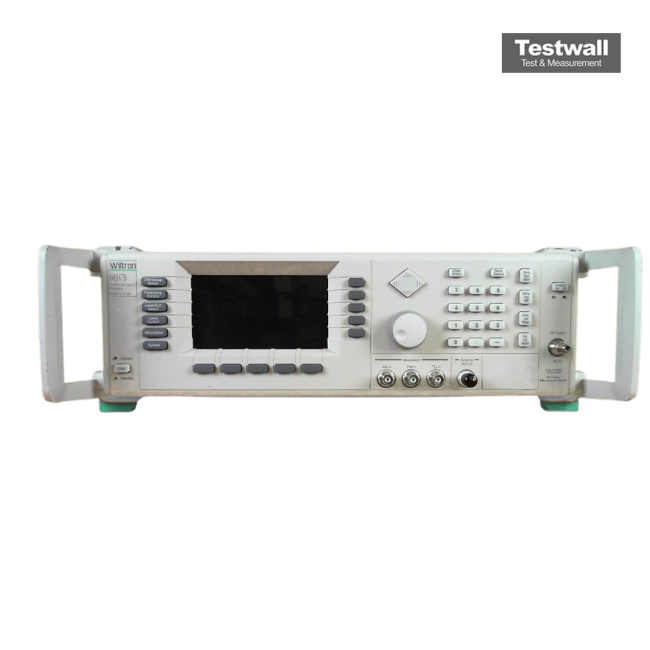

The Anritsu / Wiltron 68347B Synthesized Signal Generator offers a frequency range from 0.01 to 20 GHz, with output power up to +13 dBm (+11 dBm with step attenuator). It provides ultra-low SSB phase noise of –100 dBc at 10 kHz offset from 10 GHz, internal AM/FM/ØM/pulse modulation, and user-defined complex modulation. Waveguide extensions allow operation to 110 GHz, ensuring wide application coverage.
Designed for both CW and swept frequency generation, the 68347B supports full front-panel control and remote operation via IEEE-488 GPIB. Its high stability and economical upgrade options make it suitable for advanced RF and microwave testing environments.
Testwall can supply the used Anritsu / Wiltron 68347B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu / Wiltron 68347B.
