Anritsu 69167B
| Attribute | Value |
|---|---|
| Frequency Range | 2 MHz to 20 GHz |
| Output Power Range | -110 dBm to +17 dBm |
| Frequency Resolution | 1 Hz |
| SSB Phase Noise | -116 dBc/Hz at 10 kHz offset (at 10 GHz) |
| Spectral Purity (Harmonics) | -30 dBc typical |
| Switching Speed | 10 ms typical |
| Output Connector | Type N (female) |
| Modulation Types | AM, FM, Phase, Pulse |
| Power Supply | 100–240 VAC, 47–63 Hz |
| Interface | GPIB (IEEE-488), RS-232 |
Anritsu 69167B Options:
- 69167B - Option 1 - Rack Mounting: Rack mount kit containing a set of track slides (90° tilt capability), mounting ears, and front panel handles to let the instrument be mounted in a standard 48 cm equipment rack.
- 69167B - Option 2B - Step Attenuator: Adds a 10 dB/step attenuator for models having a high-end frequency of ≤40 GHz. Rated RF output power is reduced.
- 69167B - Option 9 - Rear Panel RF Output: Moves RF output connector to the rear panel.
- 69167B - Option 11 - 0.1 Hz Frequency Resolution: Provides frequency resolution of 0.1 Hz.
- 69167B - Option 14 - Anritsu 360B VNA Compatibility: Modifies rack mounting hardware to mate the unit in an Anritsu 360B VNA console.
- 69167B - Option 15B - High Power Output: Adds high-power RF components to the instrument in the 2–20 GHz frequency range.
- 69167B - Option 16 - High Stability Time Base: Adds an ovenized, 10 MHz crystal oscillator as a high-stability time base. Derate phase noise specification at 10 Hz offset by 8 dB.
- 69167B - Option 17B - Delete Front Panel: Deletes the front panel for use in remote control applications where a front panel display and keyboard control are not needed.
- 69167B - Option 18 - mmWave Bias Output: Adds rear panel bias output to drive 54000-xWRxx millimeter wave source modules. BNC Twinax connector.
- 69167B - Option 19 - SCPI Programmability: Adds GPIB command mnemonics complying with Standard Commands for Programmable Instruments (SCPI), Version 1993.0. SCPI programming complies with IEEE 488.2–1987.
- 69167B - Option 22 - 0.1 Hz to 10 MHz Audio Frequency: Adds CW and step sweep frequency coverage below 10 MHz. No modulation is available below 10 MHz. Derate output power by 1 dB for ≤20 GHz and 2 dB for >20 GHz.
| Model | 69167B |
|---|

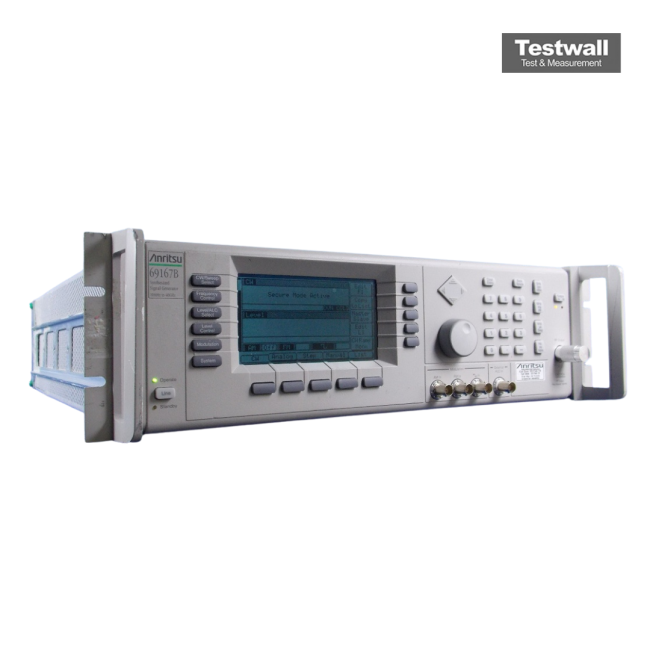

The Anritsu 69167B Synthesized Signal Generator is a microprocessor-based source with high-resolution phase-lock capability, offering a frequency range of 0.01 to 40 GHz. It provides both broad and narrow band sweeps as well as discrete CW frequencies. All functions are fully controllable from the front panel or remotely via the IEEE-488 GPIB interface.
Ideal for precision testing environments, the Anritsu 69167B ensures accurate signal generation for demanding applications across RF and microwave systems.
Testwall can supply the used Anritsu 69167B Synthesized Signal Generator, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu 69167B Synthesized Signal Generator.
