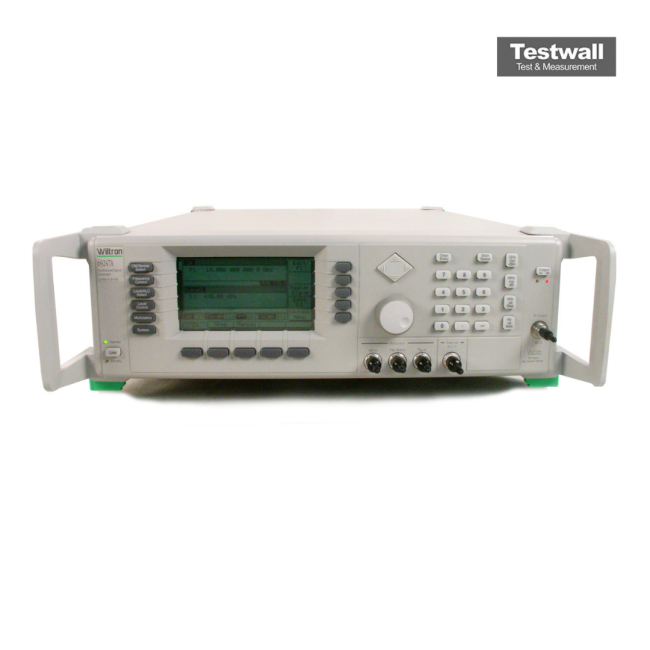

Anritsu 69247A 10MHz-20GHz Synthesised Signal Generator
10MHz-20GHz Synthesised Signal Generator
| Attribute | Value |
|---|---|
| Frequency Range | 10 MHz to 20 GHz |
| Frequency Resolution | 1 Hz |
| Output Power Range | -110 dBm to +13 dBm |
| Spectral Purity (SSB Phase Noise) | -116 dBc/Hz at 10 GHz, 10 kHz offset |
| Frequency Switching Speed | 5 ms typical |
| Modulation Types | AM, FM, Phase Modulation, Pulse Modulation |
| Output Connector | Type-N (Female) |
| Reference Oscillator | Internal 10 MHz OCXO with external reference input capability |
| Power Requirements | 100-240 VAC, 50/60 Hz |
| Interface/Control | GPIB (IEEE-488.2), RS-232 |
Anritsu 69247A 10MHz-20GHz Synthesised Signal Generator Options:
- 69247A - Option 1 - Rack mounting kit, includes one set of track slides (90° tilt capability), mounting ears, and front panel handles for mounting in a standard 19-inch equipment rack
- 69247A - Option 2A - Step attenuator (10 dB/step, high-end frequency of ≤26.5 GHz, rated output power is reduced)
- 69247A - Option 2B - Step attenuator (10 dB/step, high-end frequency of ≤40 GHz, rated output power is reduced)
- 69247A - Option 6 - Phase modulation capability FM input and FM generator become FM/øM input and FM/øM generator. Not available with Option 7
- 69247A - Option 7 - Deletes the internal AM and FM generators. External AM and FM capability remains unchanged. Not available in combination with Option 6, 8, 10 or 20
- 69247A - Option 8 - Internal power meter adds an internal power meter compatible with 560-7, 5400-7, or 6400-71 series detectors. Not available with Option 7
- 69247A - Option 9 - Rear panel RF output (moves RF output connector to the rear panel)
- 69247A - Option 10 - Complex modulation (user defined modulation includes serial cable and Windows® based software). Not available with Option 7
- 69247A - Option 11 - 0.1 Hz frequency resolution (provides frequency resolution of 0.1 Hz)
- 69247A - Option 14 - Wiltron 360B VNA compatibility (modifies rack mounting hardware to mate unit in Wiltron 360B VNA console)
- 69247A - Option 15 - High power output (provides high-power from 2 to 26.5 GHz)
- 69247A - Option 16 - High stability time base (adds an ovenized, 10 MHz crystal oscillator as a high-stability time base)
- 69247A - Option 17 - Delete front panel (deletes the front panel for use in remote control applications where a front panel display and keyboard control are not needed)
- 69247A - Option 18 - MM-wave bias (rear panel bias output to drive 54000-XX WRXX multiplier. BNC twinax: not available with Option 20)
- 69247A - Option 19 - SCPI programmability adds GPIB command mnemonics complying with Standard Commands for Programmable Instruments (SCPI), Version 1993.0. SCPI programming complies with IEEE 488.2–1987
- 69247A - Option 20 - SCAN modulator (adds an internal SCAN modulator for simulating high-depth amplitude modulated signals. Requires an external modulating signal input: not available in combination with Option 7 or Option 18)
| Model | 69247A |
|---|
The Anritsu 69247A 10MHz–20GHz Synthesised Signal Generator is designed for precision RF testing across wide frequency ranges. It supports high‑stability signal generation, making it suitable for demanding laboratory and field applications. Built with durable components, it ensures repeatable and consistent measurement setups in high-frequency environments.
This versatile generator is ideal for network equipment testing, calibration routines, and precision attenuation tasks. It provides reliable performance for both research and production testing needs.
Testwall can supply the used Anritsu 69247A 10MHz–20GHz Synthesised Signal Generator, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu 69247A 10MHz–20GHz Synthesised Signal Generator.
