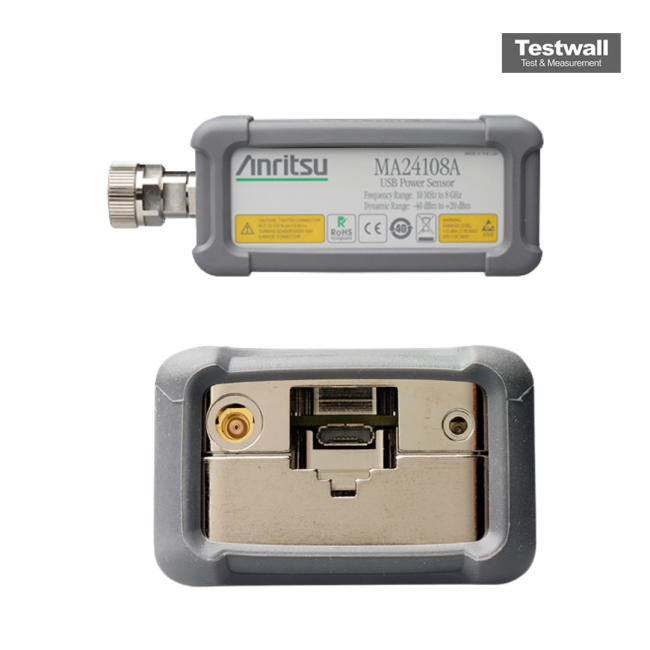

Anritsu MA24108A
| Attribute | Value |
|---|---|
| Frequency Range | 100 kHz to 8 GHz |
| Power Measurement Range | -60 dBm to +20 dBm |
| Measurement Speed | Up to 2,000 readings per second |
| Connector Type | Type-N (Male) |
| Interface | USB 2.0 |
| Dynamic Range | 80 dB |
| Power Supply | Bus powered via USB |
| Operating Temperature | 0°C to +55°C (32°F to 131°F) |
| Measurement Uncertainty | ±0.10 dB (typical) |
| Compatible Software | Anritsu Power Monitor Software, LabVIEW, MATLAB |
| Model | MA24108A |
|---|
The Anritsu MA24108A is a high-performance USB power sensor designed for precise measurements from 10 MHz to 8 GHz, with a wide dynamic range of -40 dBm to +20 dBm. It supports average power measurements for CW and modulated signals with excellent accuracy and speed. Ideal for integration into automated test systems, it operates with minimal external power and connects via USB for seamless data transfer.
This sensor is suited for wireless device testing, RF component evaluation, and general lab measurements. It is compatible with Anritsu’s PowerXpert software and ensures streamlined, repeatable readings across its range.
Testwall can supply the used Anritsu MA24108A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MA24108A.
