Anritsu MA2442A
| Attribute | Value |
|---|---|
| Frequency Range | 10 MHz to 18 GHz |
| Power Range | -70 dBm to +20 dBm |
| Connector Type | 2.92 mm (K-type) Male |
| Sensor Type | Diode Power Sensor |
| Impedance | 50 Ohms |
| SWR (Maximum) | 1.20 (10 MHz to 18 GHz) |
| Operating Temperature Range | 0°C to +55°C |
| Storage Temperature Range | -40°C to +70°C |
| Calibration Factor Accuracy | ±1.0% (typical) |
| Compatible Power Meters | Anritsu ML2430A Series, ML2480B Series, and compatible Anritsu power meter platforms |
Anritsu MA2442A Options:
- MA2442A - MA2400/98 - Z540/Guide 25 Calibration
- MA2442A - MA2400/99 - Premium Calibration
| Model | MA2442A |
|---|

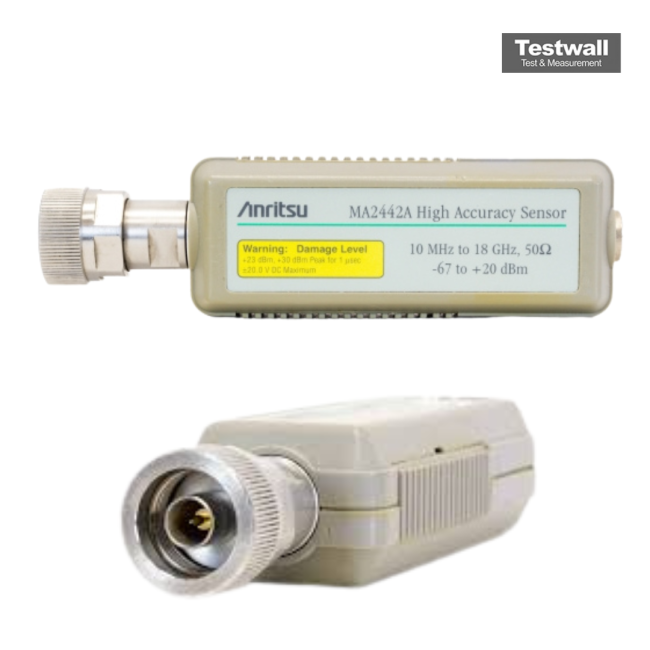

The Anritsu MA2442A is a high-accuracy RF power sensor operating from 10 MHz to 18 GHz with a power range of -67 to +20 dBm. It features an N-type male RF connector and supports stable power readings down to -70 dBm with 90 dB dynamic range. Its integrated matching circuit improves return loss performance for precision measurements of modulated RF signals.
Designed for use with the ML2430A Series Power Meters, it captures accurate power levels for complex waveforms and supports N, K, and V type connectors.
Testwall can supply the used Anritsu MA2442A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MA2442A
