Anritsu MA2442B
| Attribute | Value |
|---|---|
| Frequency Range | 10 MHz to 18 GHz |
| Sensor Type | Diode Power Sensor |
| Power Range | -70 dBm to -20 dBm (100 pW to 10 µW) |
| Connector Type | N-Type (Male) |
| Impedance | 50 Ohm |
| VSWR | 1.20 (10 MHz to 2 GHz), 1.35 (2 GHz to 12.4 GHz), 1.50 (12.4 GHz to 18 GHz) |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -40°C to +70°C |
| Calibration Factor | Stored in sensor EEPROM |
| Compatible Power Meters | Anritsu ML2430A Series, ML2480B Series, and other Anritsu power meters |
| Model | MA2442B |
|---|

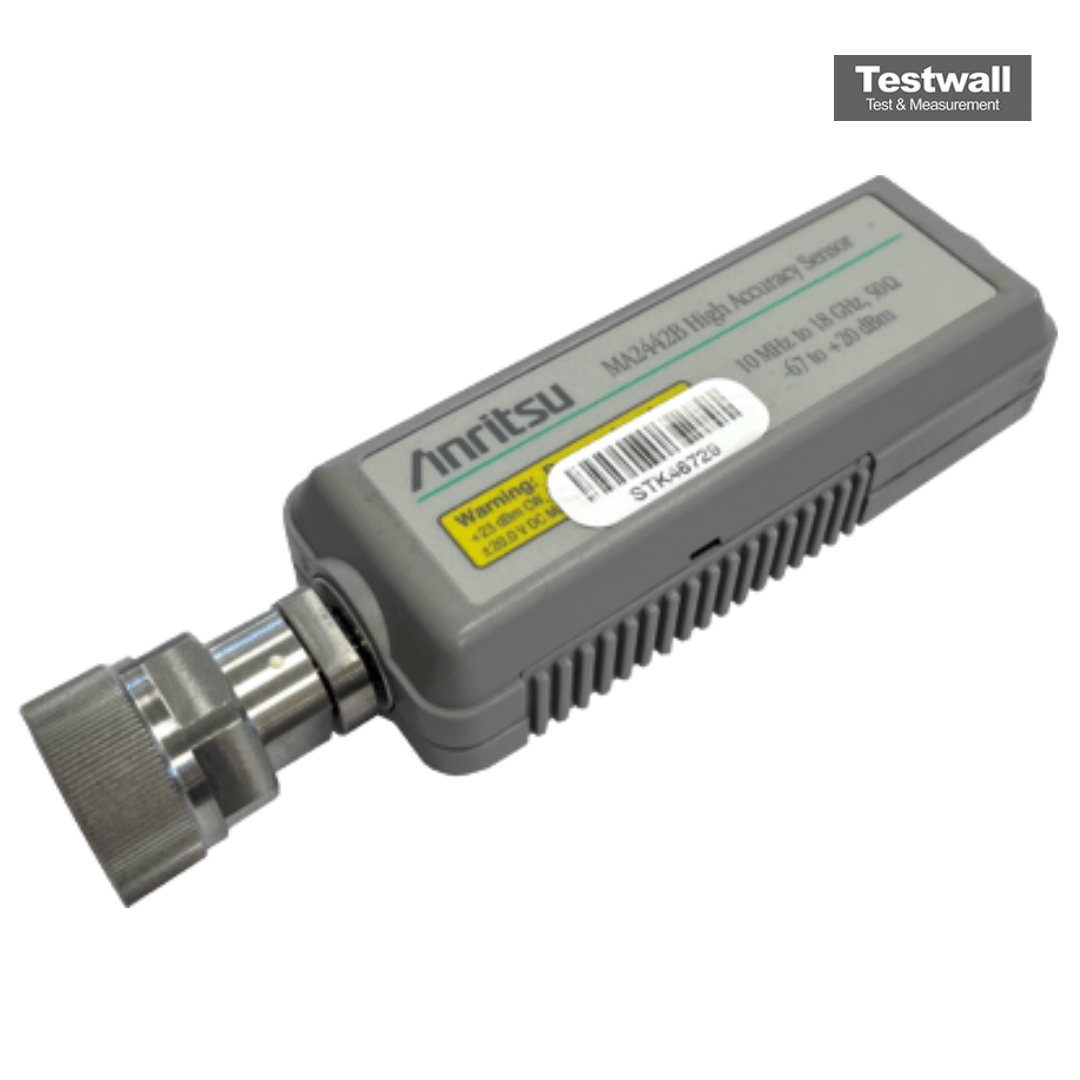

The Anritsu MA2442B is a used 18 GHz RF Watt Sensor designed for high-precision broadband microwave measurements. It uses diode detectors for accurate power readings of multi-tone and modulated RF waveforms. Part of the MA244XA Series, it offers compatibility with ML2430A Series Power Meters, delivering high accuracy in RF power detection.
Ideal for lab and field testing, the MA2442B sensor measures up to 18 GHz and supports reliable RF waveform power analysis with excellent sensitivity and repeatability.
Testwall can supply the used Anritsu MA2442B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MA2442B.
