Anritsu MA2445A
| Attribute | Value |
|---|---|
| Frequency Range | 10 MHz to 18 GHz |
| Sensor Type | Diode Power Sensor |
| Power Range | -70 dBm to -20 dBm |
| Connector Type | 2.92 mm (K-type) Male |
| Impedance | 50 Ohms |
| VSWR | 1.15 (typical) up to 18 GHz |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -40°C to +71°C |
| Compatible Power Meters | Anritsu ML2430A Series, ML2480B Series |
| Calibration Factor | Stored in internal EEPROM for automatic correction |
Anritsu MA2445A Options:
- MA2445A - 760-209 - Hardside Transit Case
- MA2445A - D41310 - Soft Carry Case with Shoulder Strap
- MA2445A - MA2418A - 50 MHz Reference Oscillator with Power Supply
- MA2445A - ML2400A-01 - Rack Mount, single unit
- MA2445A - ML2400A-03 - Rack Mount, side by side
- MA2445A - ML2400A-05 - Front Bail Handle
- MA2445A - ML2400A-12 - Front Panel Cover
- MA2445A - ML2400A-20 - Spare 1.5m Sensor Cable
- MA2445A - ML2400A-21 - 0.3m Sensor Cable
- MA2445A - ML2400A-22 - 3m Sensor Cable
- MA2445A - ML2400A-23 - 5m Sensor Cable
- MA2445A - ML2400A-24 - 10m Sensor Cable
- MA2445A - ML2400A-25 - 30m Sensor Cable
- MA2445A - ML2400A-26 - 50m Sensor Cable
- MA2445A - ML2400A-27 - 100m Sensor Cable
- MA2445A - ML2400A-28 - RS232 Bootload Cable
- MA2445A - ML2400A-29 - Bulkhead Adapter
- MA2445A - ML2419A - Range Calibrator
- MA2445A - MA2497A - Agilent/HP84xxA Series Sensor Adaptor
- MA2445A - MA2499B - Anritsu 4700 & 4600 Series Sensor Adapter
| Model | MA2445A |
|---|

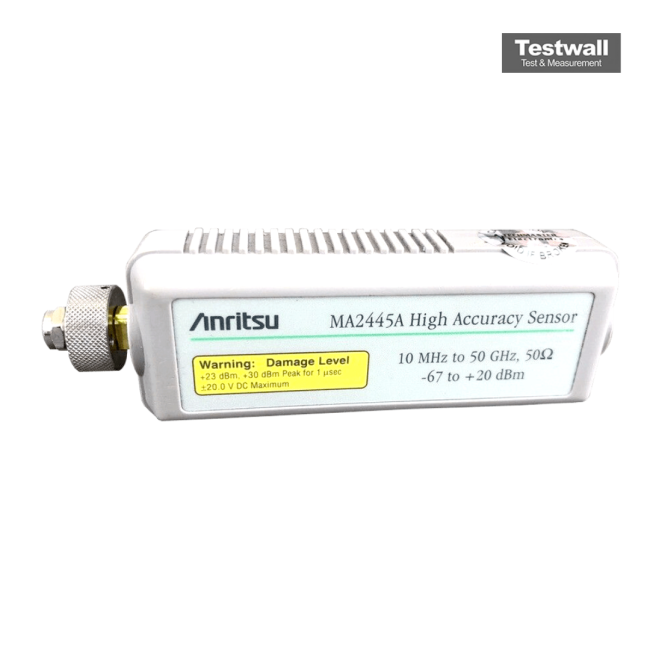

The Anritsu MA2445A is a specialist high-accuracy diode sensor designed to deliver linear and consistent measurements across mid-range RF bands. Supporting frequencies from 10 MHz up to 50 GHz, it offers outstanding precision for demanding RF applications. With a dynamic range of –67 dBm to +20 dBm and built-in EEPROM calibration, it ensures reliability over varying temperature and frequency conditions.
This sensor is ideal for amplifier testing, signal verification, and precision calibration scenarios, making it a valuable tool for engineers working in RF testing and development.
Testwall can supply the used Anritsu MA2445A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MA2445A.
