Anritsu MA2472A
| Attribute | Value |
|---|---|
| Frequency Range | 10 MHz to 18 GHz |
| Power Range | -70 dBm to +20 dBm |
| Connector Type | 2.92 mm (K-type) Male |
| Sensor Type | Diode Power Sensor |
| Impedance | 50 Ohms |
| SWR (Maximum) | 1.20 (10 MHz to 18 GHz) |
| Calibration Factor Uncertainty | ±2.3% (typical) |
| Operating Temperature Range | 0°C to +55°C |
| Storage Temperature Range | -40°C to +71°C |
| Compatible Power Meters | Anritsu ML2430A Series, ML2480B Series, and other Anritsu power meters |
Anritsu MA2472A Options:
- MA2472A - MA2480/01 - Option 1, Universal Power Sensor CW Option
- MA2472A - MA2400/98 - Z540/Guide 25 Calibration
- MA2472A - MA2400/99 - Premium Calibration
- MA2472A - MA2497A - Agilent (HP) Sensor adapter
- MA2472A - MA2499B - Anritsu Sensor 10 to 12 pin Adapter
| Model | MA2472A |
|---|

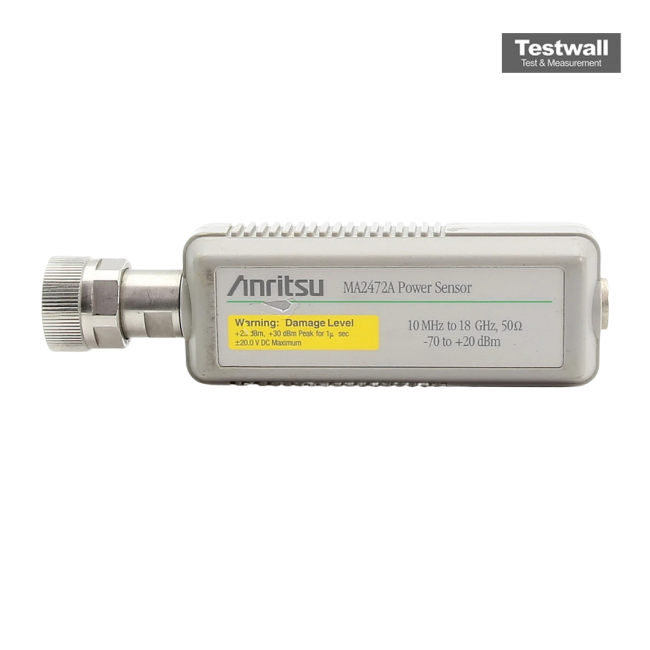

The Anritsu MA2472A is a used RF Power Sensor operating from 10 MHz to 18 GHz with a measurement range of -70 to +20 dBm. It employs diode detectors for precise waveform analysis and includes a matching circuit to enhance return loss performance. Equipped with an N-Type (m) connector, it integrates seamlessly with the Anritsu ML2430A Series Power Meters.
This sensor is ideal for accurate multi-tone and modulated RF waveform measurements, ensuring reliable power testing across a wide frequency range in demanding applications.
Testwall can supply the used Anritsu MA2472A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MA2472A.
