Anritsu MA2475A
| Attribute | Value |
|---|---|
| Frequency Range | 10 MHz to 18 GHz |
| Connector Type | 2.92 mm (K-connector) |
| Maximum Input Power | +20 dBm |
| Dynamic Range | -70 dBm to +20 dBm |
| Detector Type | Broadband Power Sensor |
| VSWR | 1.35:1 typical |
| Operating Temperature | -10°C to +55°C |
| Storage Temperature | -40°C to +70°C |
| Calibration Factor Frequency Points | Up to 50 points |
| Compatible Power Meters | Anritsu ML2430A Series, ML2480B Series |
| Model | MA2475A |
|---|

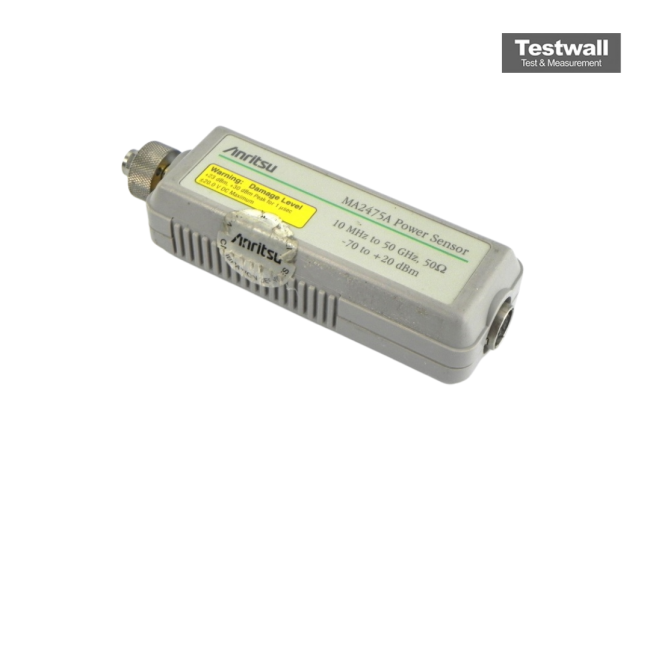

The Anritsu MA2475A High Accuracy Power Sensor covers a frequency range from 10 MHz to 50 GHz, offering precise power measurements with outstanding return loss performance. It provides a wide dynamic range of 90 dB, ensuring reliable readings down to -70 dBm. Designed with APC-2.4mm connectors, the sensor supports measurements from 100 pW to 100 mW, making it suitable for high-frequency applications.
This sensor is specifically compatible with the Anritsu ML2437A and ML2438A Power Meters (sold separately). Its robust design ensures stability, accuracy, and dependable results in demanding RF environments.
Testwall can supply the used Anritsu MA2475A High Accuracy Power Sensor, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MA2475A High Accuracy Power Sensor.
