Anritsu

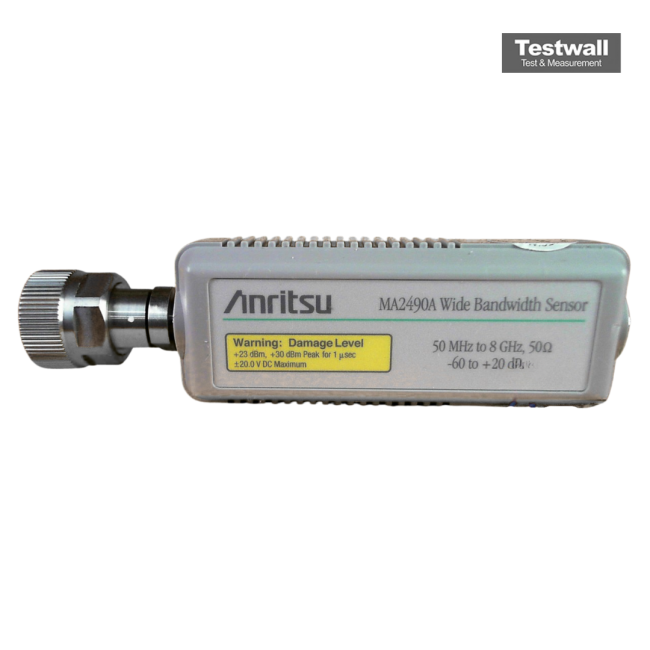

Anritsu MA2490A
50MHz To 8GHz W/band Power Sensor, -60 +20dBm
10 MHz to 18 GHz Frequency Range
-70 dBm to +20 dBm Power Measurement Range
Diode Power Sensor Sensor Type
Type-N (Female) Connector Type
1.18 (10 MHz to 2 GHz), 1.35 (2 GHz to 18 GHz) SWR (Maximum)
| Attribute | Value |
|---|---|
| Frequency Range | 10 MHz to 18 GHz |
| Power Measurement Range | -70 dBm to +20 dBm |
| Sensor Type | Diode Power Sensor |
| Connector Type | Type-N (Female) |
| SWR (Maximum) | 1.18 (10 MHz to 2 GHz), 1.35 (2 GHz to 18 GHz) |
| Dynamic Range | 90 dB |
| Operating Temperature Range | 0°C to +55°C |
| Storage Temperature Range | -40°C to +71°C |
| Interface Compatibility | Compatible with Anritsu ML2490A Series Power Meters |
| Calibration Factor Frequency Points | Up to 80 calibration factor frequency points stored internally |
| Model | MA2490A |
|---|
The Anritsu MA2490A Power Sensor operates over a frequency range of 50 MHz to 8 GHz with a dynamic power measurement range of -60 to +20 dBm, offering wideband capability and accurate readings for precision RF applications.
Suitable for high-frequency testing environments, it ensures consistent performance in signal monitoring and RF component characterization.
Testwall can supply the used Anritsu MA2490A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MA2490A.
